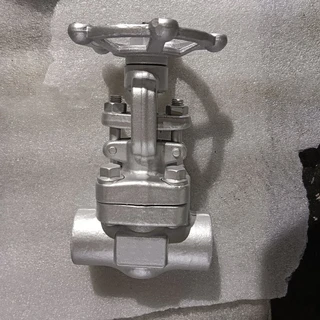

ASTM A105N Bolted Bonnet Gate Valve, 3/4 IN, 800 LB, API 602

Name: ASTM A105N Bolted Bonnet Gate Valve, 3/4 IN, 800 LB, API 602
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Shop for high-quality ASTM A105N bolted bonnet gate valves at our factory. Available in various specifications including 3/4 inch (DN20), with 800 LB (PN130) pressure rating, conforming to API 602 standards. Constructed from durable carbon steel, featuring ASME B1.20.1 end connections suitable for sizes ranging from 1/2 to 2 inches, and pressure ratings from 150 to 2500 LB.

Request a quote

Detail Information

Gate valve, CARBON steel, bolted bonnet, NPS 3/4, 800 LB, A105N.

Valve description：
Gate valve, bolted bonnet, RISING STEM.
Design: API 602.
Body: ASTM A105N
Nominal size: 3/4 INCH.
Nominal class: 800 LB.
End Connection: ASME B1.20.1.
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: CARBON steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW, NPT, BW, Flanged.
Pressure range: Class 150-2500 LB.
Working temperature: -29℃ - +425℃.

Technical parameters and characteristics

Product	Gate valve.
Nominal diameter	1/2 Inch - 2 Inch.
Design temp.	Down to -29℃.
Design pressure	150-2500 LB.
Material	Carbon steel.
Design standard	API 602.
Face to face	MFG'S.
Connection end	SW, NPT, BW, Flanged.
Test standard	API 598.
Package	Plywood
Application	Water, steam and air
Certificate	CE, ISO 9001, ISO 14001, TS
