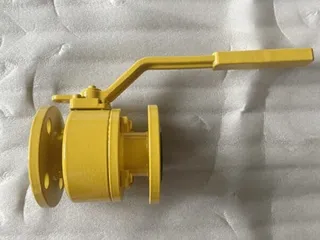

API 608 Ball Valve, ASTM A105N, 2PC, BB, 1IN, CL150, RF

Name: API 608 Ball Valve, ASTM A105N, 2PC, BB, 1IN, CL150, RF
SKU: BV-20240826-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading manufacturer of ASTM A105N ball valves in China, we produce high-quality 1-inch (DN25) valves designed to API 608 standards. Made from durable carbon steel ASTM A105N, these 2-piece ball valves are rated for 150 LB (PN20) and feature a bolted bonnet, soft seat, and raised face (RF) ends for reliable sealing. Built for durability and performance in various industrial applications, our valves are designed to meet stringent industry requirements, ensuring smooth operation and long-lasting service in demanding environments.

Request a quote

Detail Information

On this page

Full Bore Ball Valve, Carbon Steel, Bolted Bonnet, Lever, Soft Seat.

Valve Description

Design Standard: API 608
Body Material: ASTM A105N
Nominal Size: 1 Inch, DN25
Nominal Class: 150 LB, PN20
End Connection: RF
OPERATION: LEVER
Face to Face: MFG's
Test and Inspection: API 598

Product Range

Body Material: Carbon Steel
Normal Diameter: 1/2 - 32 Inch (DN15 - DN800)
End Connection: SW, BW, Flange
Pressure Range: Class 150 - 2500 LB (PN16 - PN420)
Working Temperature: -29°C - +429°C

Technical Parameters and Characteristics

Product Item	Carbon Steel Ball Valve
Nominal Diameter	1/2 Inch - 32 Inch
Design Temperature	Down to - 29°C
Design Pressure	Class 150 - 2500 LB
Material	Carbon Steel
Design Standard	API 608
Face to face	MFG' S
OPERATION	LEVER
Connection End	SW, BW, Flange
Test standard	API 598
Package	Plywood
Application	The oil and gas industry
