3 Way Floating Ball Valve, 1IN, 1000 WOG, SS 304L 304 316 316L
Key Specifications / Features
We Provide 3 Way Floating Ball Valves, API 6D 3 Way Ball Valves, Floating Type, 1 Inch, DN25, 1000 WOG, Stainless Steel SS 304L 304 316 316L, NPT End.
Request a quote
Detail Information

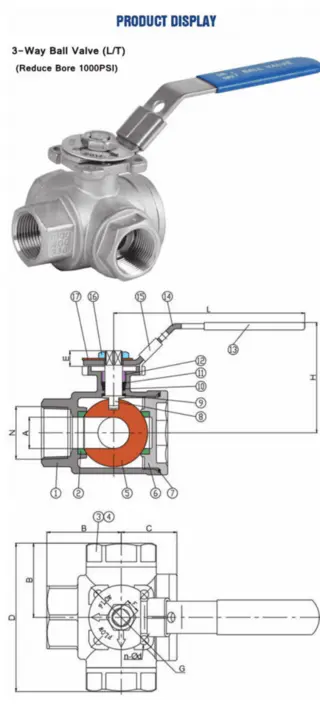

DN25 3-Way Floating Ball Valve
Design Standard: API 6D
Body Material: Stainless Steel 304L 304 316 316L
Nominal Diameter: 1 Inch, DN25
Pressure: 1000 wog
End Connection: FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: 3 Way Floating type, 1000 wog NPT
Design Standard: API 6D
Body Material: Stainless Steel 304L 304 316 316L
Nominal Diameter: 1 Inch, DN25
Pressure: 1000 wog
End Connection: FLANGE
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: 3 Way Floating type, 1000 wog NPT
| General information about 3 Way Manual Operated Ball valves | |
| Material | SS304, 304L, 316, 316L/SCS313, 314/CF8, CF3, CF8M, CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16, PN25, PN40, PN64/Class 150, Class 300, 1000PSI |
| Standard | DIN, API, ANSI, ASTM, JIS, EN, BS, GB |
| Working temperature | -30-185°C |
| Connection type | Thread (screw), Flange, Weld |
| Production process | Mold making, Precision casting (Investment Casting), Testing, CNC machining, Pressure and sealing tests, Assembling |
| Certificate | ISO9001, CE PED, SGS. (Other certificates can be applied with each shipment) |
| Lock and platform | Based on customers' requirements |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on the quantity, normally 30-45 days / Delivery from SHANGHAI port or as customers’ choice |
