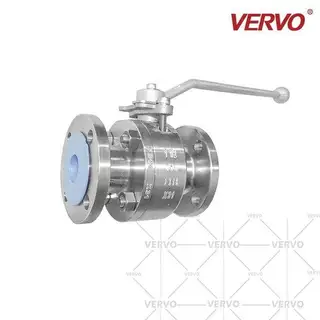

2 Piece Soft Seated Floating Ball Valve, 1-1/2 Inch, 150 LB
Key Specifications / Features
Detail Information
Name: 2 Piece Ball Valve
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
Standard: API 608
Material: ASTM A182 F316
Temperature Of Media: -29℃ To 120℃
Feature: Soft Seated
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Pressure: Class 150-2500 LB
Standard: API 608, GOST, DIN
Material: Forging Steel
End: RF, RTJ, or BW
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
| tem | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Brand | VERVO |
| Model number | Q41F-150LB |
| Power | Manual |
| Port Size | 1-1/2 Inch |
| Structure | Ball, Floating |
| Pressure | low pressure |
| Temperature | -46℃-200℃ |
| Medium | Weak acid-base medium |
| Connection form | Flanged |
| Body material | Stainless Steel F316 |
| Seal material | Gasket |
Send your message to this supplier
FAQs
Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.
Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.
