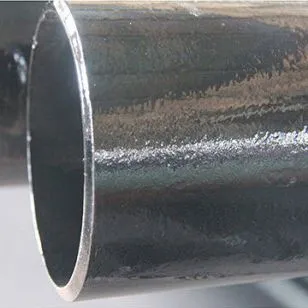

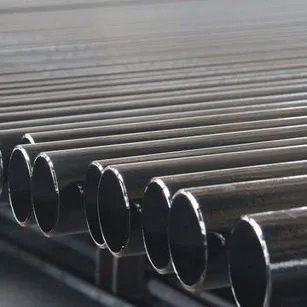

Q235B MS ERW Steel Pipe, OD 1/2-18 Inch

Name: Q235B MS ERW Steel Pipe, OD 1/2-18 Inch
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Q235B MS ERW Steel Pipe Manufacturer: Q235 ERW Steel Pipe, OD 1/2-18 Inch, WT 0.5-25mm, BS, API, ASTM A53-A369, Q195-Q345, ST35-ST52, Galvanized.

Request a quote

Detail Information

Standard: API, ASTM, BS, GB, JIS, API 5L, ASTM A53-2007, ASTM A53M-2007, BS 1139, BS 1387, BS EN 39, GB/T3901, JIS G3444-2006, JIS G3452-2004.
Grade: A53-A369, Q195-Q345, ST35-ST52, A106(B,C), Q195, Q215, Q235, Q345, ST35, St37.
Thickness: 0.5 - 25 mm.
Section shape: round.
Outer diameter: 1/2 - 18 inches.
Secondary or not: non-secondary.
Technique: ERW.
Certification: BSI.
Surface treatment: galvanized.
Special pipe: API pipe.

Main applications
1. Fluid, gas delivery, steel structure, construction.
2. ERW, welded carbon steel pipes, which with highest quality and strong supply ability are widely used in steel structure and construction.

ERW Steel pipe
Outside			Wall Thickness
DN	OD (inch)	OD (mm)	Wall Thickness
15	1/2 Inch	21.3	1.5-2.75
20	3/4 Inch	26.7	1.5-2.75
25	1 Inch	33.4	1.6-3.75
32	1.1/4 Inch	42.2	1.8-3.5
40	1.1/2 Inch	48.3	1.8-4.0
50	2 Inch	60.3	1.8-4.0
65	2.1/2 Inch	76.1	1.8-
80	3 Inch	88.9	2.0-
100	4 Inch	114.3	2.0-
125	5 Inch	140	2.5-
150	6 Inch	165	2.5-
200	8 Inch	219	3.0-
250	10 Inch	273	3.0-
300	12 Inch	324	3.0-
