M3 1000 PSI Two-Piece PTFE Seat Cast Floating WOG Ball Valves
Key Specifications / Features
China Two-Piece PTFE Seat Ball Valves Manufacturer Shinjo Supplies Two-Piece PTFE Seat Ball Valves, M3, 1000 PSI, Blow-Out Proof Stem, Cast, Floating.
Request a quote
Detail Information
M3 1000 PSI Two-Piece PTFE Seat Cast Floating WOG Ball Valves
Features:
Blow-out Proof Stem.
Pressure Balance Hole in Ball Slot.
Various Thread Standards Available.
Lock Device.
Standards:
Design: ASME B16.34.
Wall Thickness: ASME B 16.34.
Face to Face: DIN 3202-M3.
Pipe Thread: ASME B1.20.1.BS21 DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1.
Inspection & Testing: MSS SP-110, EN 12266.
Features:
Blow-out Proof Stem.
Pressure Balance Hole in Ball Slot.
Various Thread Standards Available.
Lock Device.
Standards:
Design: ASME B16.34.
Wall Thickness: ASME B 16.34.
Face to Face: DIN 3202-M3.
Pipe Thread: ASME B1.20.1.BS21 DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1.
Inspection & Testing: MSS SP-110, EN 12266.

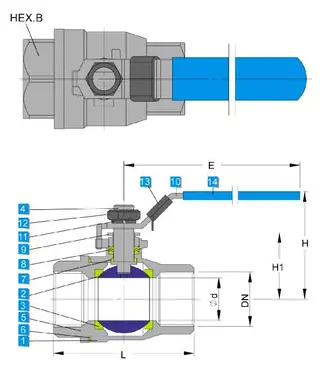

Parts Name & Material
1.Body: CF8M, CF8, WCB.
2.Ball: CF8M, CF8.
3.Seat: PTFE.
4.Stem: SUS316, SUS304.
5.Cap: CF8M, CF8, WCB.
6.Cap Seal: PTFE.
7.Thrust Washer: PTFE.
8.Stem Packing: PTFE.
9.Gland Nut: SUS301.
10.Handle: SUS301.
11.Spring Washer: SUS301.
12.Stem Nut: SUS304.
13.Locking Device: SUS301.
14.Handle Cover: Plastic.
Dimension & Thread
1.Body: CF8M, CF8, WCB.
2.Ball: CF8M, CF8.
3.Seat: PTFE.
4.Stem: SUS316, SUS304.
5.Cap: CF8M, CF8, WCB.
6.Cap Seal: PTFE.
7.Thrust Washer: PTFE.
8.Stem Packing: PTFE.
9.Gland Nut: SUS301.
10.Handle: SUS301.
11.Spring Washer: SUS301.
12.Stem Nut: SUS304.
13.Locking Device: SUS301.
14.Handle Cover: Plastic.
Dimension & Thread
| DN | Φd | L | H1 | H | E | Thread |
| 1/4" | 10.5 | 50 | 20.5 | 51.5 | 98 | NPT, MPT, BSPT, BSP, DIN, PT, etc. |
| 3/8" | 12 | 60 | 25 | 58 | 98 | |
| 1/2" | 15 | 75 | 28 | 64.5 | 120 | |
| 3/4" | 20 | 80 | 30.5 | 67 | 120 | |
| 1" | 25 | 90 | 39 | 78.5 | 150 | |
| 1 1/4" | 32 | 110 | 44 | 83.5 | 150 | |
| 1 1/2" | 38 | 120 | 54 | 98 | 170 | |
| 2" | 48 | 140 | 63 | 107 | 170 | |
| 2-1/2" | 65 | 185 | 80.5 | 133 | 250 | |
| 3" | 78 | 205 | 91 | 143.5 | 250 | |
| 4" | 100 | 240 | 107.5 | 168 | 300 |
