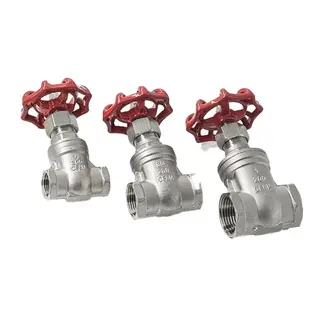

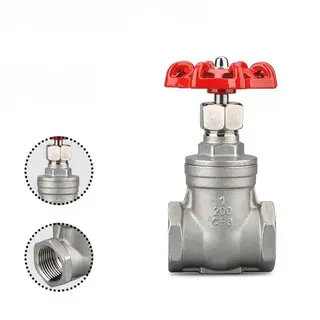

Stainless Steel Gate Valve, SS 304/316, DN15-DN100, 200 PSI

The China Stainless Steel Gate Valve Plant specializes in manufacturing high-quality Non-rising Stem Gate Valves that adhere to ASME B16.34 standards. These valves are constructed from premium materials such as ASTM A351 CF8, CF8M, SS 304, and SS 316, ensuring excellent corrosion resistance and durability. Available in sizes ranging from DN15 to DN100 (1/2 to 4 inches), these valves are rated for a maximum pressure of 200 PSI, making them suitable for a wide range of industrial applications.

Product Name: Stainless Steel Gate Valve, Non-rising Stem
Design Standard: ASME B16.34
Materials: Stainless Steel ASTM A351 CF8, CF8M, SS 304, SS 316
Size: DN15-DN100, 1/2-4 Inch
Working Pressure: 200 PSI
End Connection: Threaded
Operation: Handwheel
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Medium: Water, Oil, Gas, etc.

Stainless Steel Gate Valve Dimension Table
