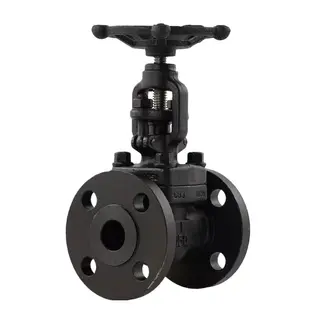

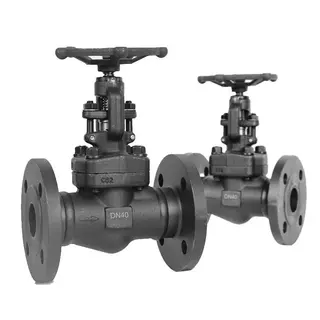

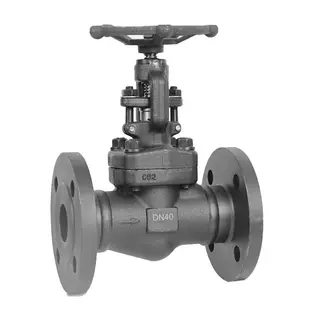

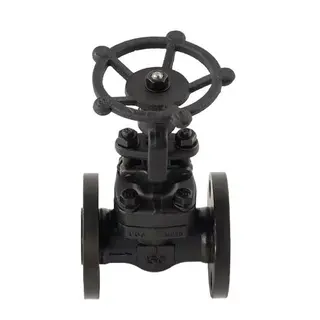

Custom Forged Globe Valve, Carbon/Stainless Steel, 1/2-20 IN
Key Specifications / Features
Our custom forged steel globe valves plant specializes in producing high-quality valves that meet API 602 and ASME B16.34 standards. We offer a wide range of materials, including carbon steel, stainless steel, and alloy steel, catering to diverse industrial needs. Our valves are available in sizes from 1/2 inch to 20 inches and in pressure classes from 150 to 2500 LB, all featuring flanged ends for secure and reliable connections.
Detail Information
Product Name: Custom Forged Steel Flanged Globe Valve
Size Range: DN15-DN500, 1/2-20 Inch
Working Pressure: PN16-PN160, Class 150-2500 LB
Body Material: Forged Steel (Carbon Steel, Stainless Steel, Alloy Steel)
Trim Material: Carbon Steel
Drive Type: Handwheel
End Connetion: Flanged Ends
Applicable Temperature: ≤425°C
Applicable Medium: Water, Steam, etc.
Applicable Fields: Suitable for oil, chemical, light industry, papermaking, power station cooling, drainage, environmental protection, etc.
Forged Steel Globe Valve Standard
Design Standard: API 602, ASME B16.34, GB 12224, GB/T 12228, BG/T 12235
Structural Length: ASME B16.10 JB/T 96-95
Flange Standard: AMSE B16.5, JB/T 82.1-82.4-94
Inspection and Test: API 598, GB/T 13927
Forged Steel Globe Valve Performance Parameters
|
Test Item (PN) MPa |
1.6 |
2.4 |
4.0 |
6.4 |
10.0 |
16.0 |
|
Strength Test |
2.4 |
3.8 |
6.0 |
9.6 |
15.0 |
24.0 |
|
Seal Test |
1.76 |
2.75 |
4.4 |
7.04 |
11.0 |
17.6 |
|
Air Tightness Test |
0.6 |
|||||
|
Application Temperature |
≤425°C |
|||||
|
Applicable Medium |
Water, Oil, Steam, etc. |
|||||
Main Dimensions and Connection Sizes of Cast Steel Globe Valve
1. J41H-16, C41H-25, J41H-40, J11H-16, C11H-25, J11H-40, J61H-16C, J61H-25, J61H-40
|
Nominal Diameter (mm) |
L |
d |
S |
L1 |
T |
L2 |
H |
D0 |
|
15 |
90 |
13 |
22.5 |
10 |
1/2 |
15 |
159 |
98 |
|
20 |
100 |
18 |
28.5 |
11 |
3/4 |
17 |
190 |
112 |
|
25 |
120 |
23 |
34.5 |
12 |
1 |
19 |
208 |
126 |
|
32 |
140 |
29 |
43 |
14 |
1 |
21 |
216 |
166 |
|
40 |
170 |
36 |
49 |
15 |
1 |
21 |
247 |
188 |
|
50 |
200 |
46 |
61 |
16 |
2 |
25 |
290 |
220 |
2. J41H-64, J11H-64, J61H-64
|
Nominal Diameter (mm) |
L |
d |
S |
L1 |
T |
L2 |
H |
D0 |
|
15 |
90 |
13 |
22.5 |
10 |
1/2 |
15 |
159 |
98 |
|
20 |
100 |
18 |
28.5 |
11 |
3/4 |
17 |
190 |
112 |
|
25 |
120 |
23 |
34.5 |
12 |
1 |
19 |
208 |
126 |
|
32 |
140 |
29 |
43 |
14 |
1 |
21 |
216 |
166 |
|
40 |
170 |
36 |
49 |
15 |
1 |
21 |
258 |
188 |
|
50 |
210 |
46 |
61 |
16 |
2 |
25 |
405 |
220 |
3. J41H-100, J11H-100, J61H-100
|
Nominal Diameter (mm) |
L |
d |
S |
L1 |
T |
L2 |
H |
D0 |
|
15 |
80 |
13 |
22.5 |
10 |
1/2 |
15 |
159 |
98 |
|
20 |
100 |
18 |
28.5 |
11 |
3/4 |
17 |
190 |
112 |
|
25 |
120 |
23 |
34.5 |
12 |
1 |
19 |
208 |
126 |
|
32 |
140 |
29 |
43 |
14 |
1 |
21 |
216 |
166 |
|
40 |
170 |
36 |
49 |
15 |
1 |
21 |
258 |
188 |
|
50 |
210 |
46 |
61 |
16 |
2 |
25 |
405 |
220 |
4. J41H-150, J11H-150, J61H-150
|
Nominal Diameter (mm) |
L |
d |
S |
L1 |
T |
L2 |
H |
D0 |
|
15 |
80 |
13 |
22.5 |
10 |
1/2 |
15 |
159 |
98 |
|
20 |
100 |
18 |
28.5 |
11 |
3/4 |
17 |
190 |
112 |
|
25 |
120 |
23 |
34.5 |
12 |
1 |
19 |
208 |
126 |
|
32 |
140 |
29 |
43 |
14 |
1 |
21 |
216 |
166 |
|
40 |
170 |
36 |
49 |
15 |
1 |
21 |
258 |
220 |
|
50 |
210 |
46 |
61 |
16 |
2 |
25 |
405 |
220 |
