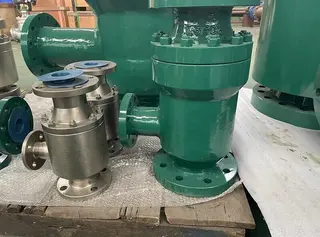

Automatic Recirculation Control Valve, 4IN, 300 LB, Cast Steel

Name: Automatic Recirculation Control Valve, 4IN, 300 LB, Cast Steel
SKU: LV-CV-20240925-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We are a manufacturer of Automatic Recirculation Control (ARC) Valves, available in cast carbon steel or stainless steel, with sizes ranging from 1 inch to 16 inches, and pressure ratings of 150-400 LB. Our 4-inch models, including DN100 and CL 300 LB, meet PN50 standards. The ARC valve is designed with a simple structure for cost-effectiveness and long service life, ideal for low-pressure applications. It supports a maximum operating pressure differential of 4 MPa, with a bypass flow rate of up to 60% of the main flow and an adjustable KV value for optimized performance.

Request a quote

Detail Information

On this page

Product Item:	Automatic Recirculation Control Valve, ARC Valve
Material:	Cast Steel, Carbon Steel or Stainless Steel, etc
Sizes:	4 Inch, DN100
Pressure Rating:	Class 300 LB, PN50
Size Range:	1 Inch - 16 Inch
Pressure Range:	Class 150 LB - 400 LB
Applications of ARC Valve:
Chemical Industry
Petrochemical Industry
Steel Manufacturing
Fire Protection Systems
Conventional Power Plants
Paper Manufacturing
Marine and Shipping Industry
Environmental Protection Industry

Features of ARC Valve

The ARC valve offers a simple structure, cost-effectiveness, and long service life, making it ideal for low-pressure applications. It can handle a maximum operating pressure differential of up to 4 MPa. The bypass allows for high flow capacity, with a maximum flow rate of 60% of the main flow, and its KV value is adjustable for optimal performance.
