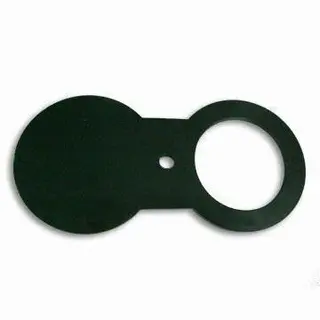

A182 Alloy Steel Spectacle Blind Flange, FF
Key Specifications / Features
China A182 Alloy Steel Spectacle Blind Flange: ASTM A182 F11, F22, FF Spectacle Blind Flanges, DIN 2656, DIN 2635, EN1092-1, 150LB-2500LB, 1/2-24 Inch.
Request a quote
Detail Information
Product: FF Alloy Steel Spectacle Blind Flange.
Type: Spectacle Blind Flange.
Materials: ASTM A182, Alloy Steel.
Grade: F11, F22.
Face: FF.
Standards: DIN 2656, DIN 2635, EN1092-1.
Pressure: 150LB-2500LB (PN20-PN420).
Size: 1/2-24 Inch.(DN15-DN600).
| DN | d | B | Q | L | T1 | G | T | (kg) |
| 15 | 38 | 17 | 10 | 60 | 4 | 12 | 8 | 0.24 |
| 20 | 48 | 23 | 15 | 60 | 4 | 12 | 8 | 0.31 |
| 25 | 58 | 29 | 15 | 60 | 4 | 12 | 8 | 0.4 |
| 40 | 78 | 43 | 15 | 60 | 4 | 14 | 8 | 0.62 |
| 50 | 88 | 55 | 15 | 60 | 6 | 14 | 8 | 0.78 |
| 80 | 124 | 83 | 30 | 60 | 6 | 18 | 8 | 1.35 |
| 100 | 144 | 108 | 30 | 70 | 6 | 18 | 8 | 1.67 |
| 200 | 254 | 210 | 40 | 70 | 8 | 18 | 12 | 6.64 |
| 300 | 363 | 312 | 40 | 80 | 8 | 22 | 15 | 15.77 |
| 400 | 463 | 393 | 50 | 80 | 10 | 22 | 18 | 31.07 |
| 500 | 568 | 495 | 50 | 80 | 10 | 22 | 22 | 54.91 |
| 600 | 667 | 597 | 50 | 80 | 10 | 27 | 25 | 82.84 |
