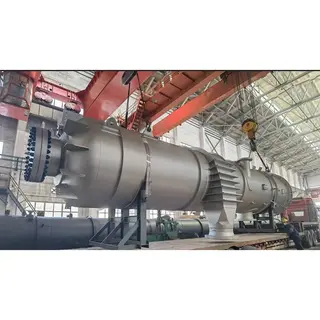

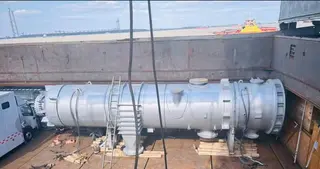

Steam Water Separator Vessel, ASME U-Stamp, SA516 70, 2286 mm

Name: Steam Water Separator Vessel, ASME U-Stamp, SA516 70, 2286 mm
SKU: LD-20260108-EP-04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Steam Water Separator Vessel Factory specializes in producing high-performance separator vessels designed for demanding applications. These two-phase separator vessels are manufactured with ASME U-Stamp certification, ensuring compliance with stringent safety and quality standards. Constructed from ASME SA516 Grade 70 carbon steel, they offer robustness and reliability. With an inner diameter of 2286 mm and a working pressure of 2.18 MPa, these vessels are specifically tailored for geothermal power projects.

Request a quote

Detail Information

Equipment Name: Steam Water Separator Vessel, ASME U-Stamp
Service: Geothermal Power
Material: ASME SA516 Grade 70
Manufacturing Code: ASME
Specification: ID 2286 mm
Design Pressure: 2.18 MPa
Design Temperature: 216 °C
Fluid: Two Phases (Steam / Water)
Certification Requirement: ASME U-Stamp required before delivery
Project Site: Geothermal Power Production Field in Leyte

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

What Are Rising Stem & Non-Rising Stem Gate Valves?

What is a Non-Rising Stem Gate Valve?

A valve where the stem does not move vertically but rotates internally to raise or lower the gate. This design is ideal for installations with limited vertical space.

How Does a Non-Rising Stem Gate Valve Work?

The handwheel turns the stem, which in turn moves the gate up or down inside the valve body without changing the external height of the stem.

How Does a Rising Stem Gate Valve Work?

The handwheel lifts the stem and gate together, providing a visual indication of whether the valve is open or closed.

Which Valve Should I Choose?

Use a rising stem valve for above-ground applications where visibility and ease of maintenance are important.

Use a non-rising stem valve for underground or space-limited installations.

Conclusion

The choice between rising stem and non-rising stem gate valves depends on your specific application needs. For clear valve status indication and easy maintenance, go with a rising stem valve. For compact installations, a non-rising stem valve is the better option.
