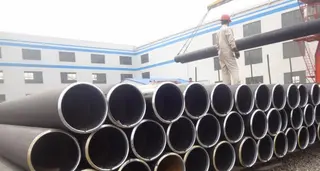

Carbon Steel LSAW Pipe, 20 Inch, OD 508 mm, WT 11 mm, Custom

Name: Carbon Steel LSAW Pipe, 20 Inch, OD 508 mm, WT 11 mm, Custom
SKU: LD-20251120-OP-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Carbon Steel LSAW Pipe Manufacturer specializes in producing high-quality longitudinal submerged arc welded pipes using the SAWL (Longitudinal Submerged Arc Welding) and DSAW (Double Submerged Arc Welding) processes. These pipes have an outer diameter of 508 mm (20 inches) and a wall thickness of 11 mm. Manufactured using the advanced JCOE (Jig Cut and Form) process, these pipes offer superior strength and reliability. Customization options are available to meet specific requirements.

Request a quote

Detail Information

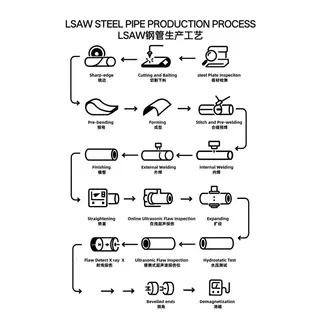

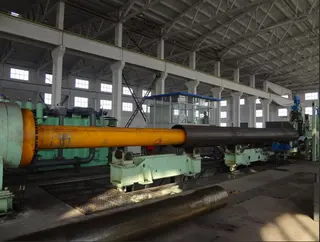

Product Name: Longitudinal Submerged Arc Welding (LSAW) Steel Pipes, JCOE Process
Type: LSAW Steel Pipe, SAWL Steel Pipe, DSAW Steel Pipe
Material: Carbon Steel
Size: 20 Inch, OD 508 mm
Wall Thickness: 11 mm
Exported to Kenya Project

Product Range

Specifications:
Outer Diameter: 406 mm – 1524 mm (16–60 Inch)
Wall Thickness: 6 mm – 60 mm
Length: 5.8 m / 6 m / 11.8 m / 12 m / 18 m (customized sizes available)
Standard and Steel Grade:
API SPEC 5L (PSL1 or PSL2): API 5L Grade B, X42, X46, X52, X56, X60, X65, X70
ASTM A252: ASTM A252 Grade 1, Grade 2, Grade 3
ASTM A53 / ASTM A500: ASTM A53 Grade A, ASTM A53 Grade B
ASTM A671 / ASTM A672: CA55, CB60, CB65, CB70, CC60, CC65, CC70
EN 10219 / EN 10217: S235JR/J0/J2, 275JR/J0/J2S, S355JR/J0/J2/J2G3/G4
Ends: Bevelled Ends / Plain Ends / Welded with Flange
Surface Treatment: Bare, Black Painting, Varnished, Galvanized, Anti-corrosion Coating (FBE, 3LPE, 3LPP), etc.
