Carbon Steel Steam Trap, EN 26704, WCB, DN25, Inverted Bucket

Name: Carbon Steel Steam Trap, EN 26704, WCB, DN25, Inverted Bucket
SKU: KV-20250804-ST-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Inverted Bucket Steam Trap is designed to efficiently remove condensate from steam systems. This model adheres to the EN 26704 standard and features a carbon steel ASTM A216 WCB body, ensuring durability and reliability. With a nominal diameter of DN25 (1 inch) and a pressure rating of PN16/Class 150 LB, it is equipped with threaded ends for secure and easy installation.

Request a quote

Detail Information

Product Name: Inverted Bucket Steam Trap
Design Standard: EN 26704
Body Material: ASTM A216 WCB
Size: DN25, 1 Inch
Pressure: PN16, Class 150 LB
End Connection: Threaded
Medium: Steam Condensate

The inverted bucket type steam trap, a mechanical steam trap, boasts exceptional performance and is suitable for low, medium, and high-pressure applications. It features stainless steel internal components and a heat-treatable steel base. This trap is known for its robust construction, resistance to wear and corrosion, long service life, and durability. It is highly recommended for condensate recovery systems due to its steam-saving capabilities, high thermal efficiency, and anti-back pressure characteristics. Additionally, the trap can be equipped with a check valve to save piping space.

Technical Specification

» Normal Size Range: 3/4 Inch - 2 Inch (DN20-DN50)
» Normal Pressure Rating: PN16, PN25 , Class 150 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Maximum Allowable Pressure (PMA): 40 Barg
» Maximum Allowable Temperature (TMA): 300°C
» Maximum Differential Pressure (ΔPMX): 20 Bar
» Medium: Steam condensate

Standards Compliance

» Design and Manufacture: ISO 6552; EN 26704
» Face to Face (End to End): EN 26554
» Flanged Connection: GB/T 9113
» Test and Inspection: EN 26948

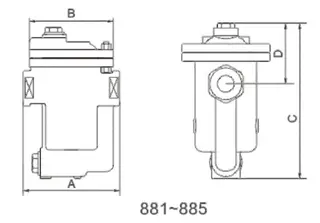

Structural Diagram
