Carbon Steel Gate Valve, API 600, ASTM A216 WCB, 4 IN, CL300

The China Carbon Steel Gate Valve Factory produces robust gate valves engineered to API 600 standards, featuring an ASTM A216 WCB body. These 4-inch (DN100) valves are rated for Class 300 LB and PN50 pressure, ensuring reliability in high-pressure applications. Equipped with RF flanged ends and a handwheel for manual operation, they offer ease of installation and control, making them ideal for industrial piping systems requiring precise flow management.

Product Name: Carbon Steel Gate Valve
Design Standard: API 600
Body Material: ASTM A216 WCB
Size: 4 Inch, DN100
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Cast Steel Gate Valves are meticulously designed and manufactured to ensure minimal leakage of volatile organic compounds (VOCs), with a stringent limit of less than 100 parts per million (ppm). Extensive baseline laboratory testing, encompassing both static and cycle testing, has been conducted to establish critical design parameters. These parameters are essential for achieving low-emission sealing in both the stem packing seal area and the bonnet gasket sealing area. To maintain this high standard, an in-house testing procedure has been developed and is periodically performed. This ensures that the standard product design and manufacturing criteria consistently result in Cast Steel Gate Valves meeting the maximum allowable leakage of 100 ppm VOCs prior to shipment.

Technical Specification

» Nominal Diameter: NPS 2-48 Inch (DN50-DN1200)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand Wheel, Bevel Gear, Electric, Pneumatic
» Design and Manufacture Standards: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connections: 2-24 Inch to ANSI B16.5; 22 Inch, 26-36 Inch to MSS-SP-44 or API 605 (on request)
» Test and Inspection Standards: API 598, API 6D
» Butt Welded Ends: ANSI B16.25

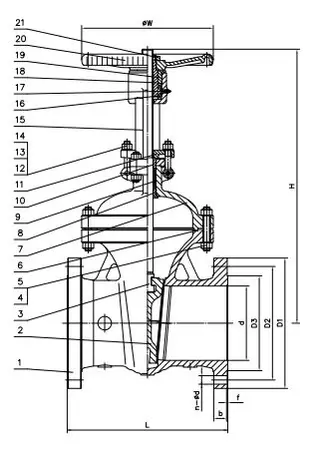

Structural Diagram

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
» Grub screw: Secures yoke nut in the bonnet
» Grease nipple: Supplies lubricant to the mating parts
» OS&Y, Outside Stem and Yoke
» Metal-sealed, API Trim #1, #5, #8, #10, etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
