ASTM A182 F316 Piston Check Valves, API 602, 1 IN, CL300, RF

The ASTM A182 F316 Check Valves Supplier offers high-quality piston check valves designed to meet API 602 standards. These valves feature a forged stainless steel body made from grade F316 material, ensuring durability and corrosion resistance. With a 1-inch (DN25) size and a pressure rating of Class 300 LB (PN50), they are equipped with RF (raised face) flanged ends for secure and reliable connections.

Product Name: ASTM A182 F316 Piston Check Valves
Design Standard: API 602
Body Material: ASTM A182 F316
Size: 1 Inch, DN25
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Forged Steel Check Valves are meticulously designed and manufactured in strict compliance with international standards such as API 602 and ASME B16.34, or their equivalents. These valves are engineered to minimize flow resistance and pressure drop, ensuring optimal performance. They are specifically designed to be mounted in a horizontal position. The lapped and screwed seat ring ensures a tight seal and long-lasting service. The valve's disc is precisely designed and machined to provide efficient automatic shut-off at zero pressure. These valves feature a compact structure and low-emission service, making them suitable for both swing and piston constructions.

Technical Specification

» Type: Pressure Sealed Check Valve
» Normal Diameter: NPS 1/2 inch to 4 inches (DN15-DN100)
» Design Pressure: Class 150 to 2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other materials
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

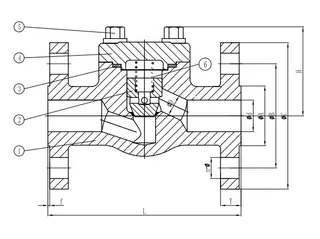

Structural Diagram

Product Features

» Water Hammer Mitigation: During the flow of liquid media, the lifting check valve can significantly reduce the occurrence of water hammer, thereby protecting the equipment and pipelines of the pipeline system from impact damage.
» Bonnet Construction: Available in bolted bonnet and welded bonnet configurations, offering flexibility based on specific application requirements.
» Valve Type Options: Both swing type and lift type are available, providing options to suit different operational needs.
» Port Design: Available in full port or reduced bore designs, allowing for optimized flow characteristics and pressure drop characteristics based on the application.
