5 Way Manifold Valve, SS 316, 1/2 Inch, 6000 PSI, FNPT Ends

The 5 Way Manifold Valve Manufacturer specializes in producing high-quality manifold valves made from stainless steel SS 316, designed for high-pressure applications. These valves feature a 1/2 inch (DN15) size and can handle pressures up to 6000 PSI, making them suitable for demanding industrial environments. The valves have FNPT threaded ends, ensuring secure and reliable connections.

Product Name: 5 Way Manifold Valve
Body Material: Stainless Steel SS 316
Size: 1/2 Inch, DN15
Pressure: 6000 PSI
End Connection: FNPT
Temperature Range: -120°C to 500°C

The 5-way manifold valve is a type of high-pressure valve that has found extensive application across various industries. These include the manufacturing of superhard materials, the chemical and petrochemical sectors, processing technologies, isostatic pressure treatment, ultra-high static pressure extrusion, powder metallurgy, metal forming, and geophysical and geological research. This versatile valve is designed to control the flow of a wide range of fluids, such as air, water, steam, corrosive media, mud, oil products, liquid metals, and even radioactive media. The valve's operation relies on a disc-shaped valve plate, which rotates around its own axis within the valve body. This mechanism allows for precise control, enabling the valve to open, close, or adjust the flow as needed.

Main parameters

» Nominal Diameter: 1/8-1 Inch
» Pressure Rating: 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI
» Working Temperature: -120°C to 500°C (range varies with pressure)
» Main Materials: SS 316, SS 304, SS 316Ti, Copper, Brass, Duplex, Carbon Steel (CS)
» Functions: 2-Way, 3-Way, 5-Way
» Body Types: R-Type, T-Type, H-Type
» Body Shapes: Square, Rectangle
» Body Construction: Bar Stock, Forged
» Handle: Bar T-Handle

Product Features

» Balance Valve Requirement: A balance valve is essential during the installation and removal process. Without it, the differential pressure range is typically very small, and the valve is susceptible to damage if the manufacturer's overload capacity is not sufficient. For instance, when the differential pressure is 60 kPa and the pipeline pressure is 1 MPa, removing the balance valve can cause the differential pressure on both sides to far exceed the set value. This occurs because the first chamber to be opened will directly communicate with the atmosphere (equivalent to 0.1 MPa), which can be detrimental to the valve's integrity.
» Mounting Design: The 5-way manifold valve is designed for close mounting of differential pressure instruments to orifice changer fittings or flanges. The flanged outlet is then directly mounted to the pressure transmitter body. This design ensures a secure and efficient connection, minimizing the risk of pressure fluctuations and ensuring accurate measurements.
» Global Distribution: Our Manifold Mount 5-way Valve is supplied to various companies across different industries worldwide. This widespread adoption is a testament to its reliability, versatility, and high performance in demanding applications.

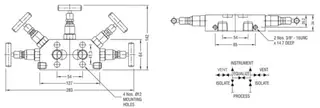

Structural Diagram
