EN 10213 1.0619 Globe Valve, BS EN 13709, DN40, PN40, EN1092-1 B
Key Specifications / Features
DN40 PN40 globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of a bolt cover and a straight-through type. Its connection mode is EN1092-1 B.
Request a quote
Quick Detail
Product Description
| Type | Globe Valve |
| Size | DN40 |
| Pressure | PN40 |
| Connection | EN1092-1 B |
| Body Material | EN 10213 1.0619 |
| Design Norm | BS EN 13709 |
| Face to Face Dimensions | BS EN 558-1 S.1 |
| Flange Ends Dimensions | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
DN40 PN40 Cast Steel Globe Valve EN 13709 1.0619
Features
1. Simple structure, convenient for manufacturing and maintenance;
2. Widely used in pipelines for petroleum, chemical, metallurgical, and other working conditions.

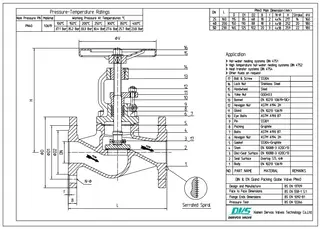

Technical Drawing

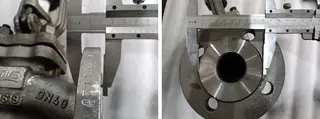

Dimension Checking

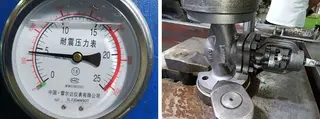

Pressure Testing

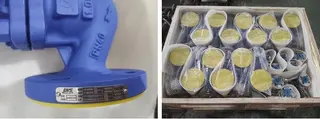

Nameplate & Packing

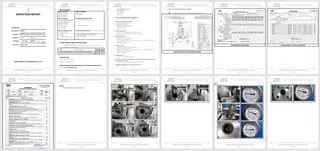

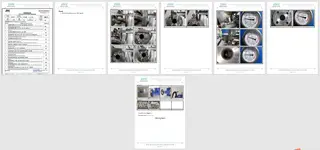

Inspection report
Features
1. Simple structure, convenient for manufacturing and maintenance;
2. Widely used in pipelines for petroleum, chemical, metallurgical, and other working conditions.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
