Double Eccentric Butterfly Valve, API 609, WCB, 20 IN, 300 LB

Name: Double Eccentric Butterfly Valve, API 609, WCB, 20 IN, 300 LB
SKU: Kelly-BTV-20241206-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 20-inch Class 300 LB double eccentric butterfly valve twins are designed per API 609 Category B standards. Constructed with a durable ASTM A216 WCB body, these valves feature a high-performance, dual-eccentric design for reliable operation. Both valves are equipped with a shared worm gear actuator for synchronized control. The wafer-style connection ensures easy installation, while the turbine operation mode provides smooth and efficient functionality, making it a robust choice for demanding industrial applications.

Request a quote

Quick Detail

Type	Double Eccentric Butterfly Valve Twins
Size	20 Inch, DN500
Pressure	Class 300 LB, PN50
Connection	Wafer
Operation	Turbine Operation
Body Material	ASTM A216 WCB
Design Norm	API 609 Category B
Pressure & Temperature	ASME B16.34
Face to Face	API 609 Category B
End Dimension	ASME B16.5
Test & Inspection Code	API 598
Temperature	-29°C - 90°C
Applicable Medium	Water, Oil and Gas

Detail Information

Double Eccentric Butterfly Valve Twins, API 609 Category B, ASTM A216 WCB.

Features

1. Integrated "Duplex" Filtering System:
The butterfly valve sets are designed to work seamlessly with duplex strainers and piping, forming a cohesive "Duplex" filtering system for enhanced efficiency.

2. Synchronized Operation:
When paired butterfly valves are installed with a shared gearbox, they enable simultaneous opening and closing. This design streamlines operations, saving time and reducing manual effort.

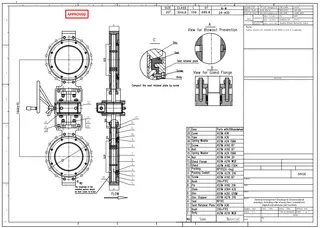

Technical Drawing
