Cryogenic Gate Valve, ASTM A352 LCB, 3 Inch, 150 LB, API 600

Name: Cryogenic Gate Valve, ASTM A352 LCB, 3 Inch, 150 LB, API 600
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Cryogenic Gate Valve Supplier: Get high-quality ASTM A352 LCB cryogenic gate valves in a 3-inch size and rated at 150 LB. These valves comply with API 600 standards and feature DN80 and PN20 specifications. Designed with a bolt cover, elastic wedge, and OS & Y mechanism, they ensure reliable operation. The valves come with RF end connections and are operated manually using a convenient handwheel. Explore our range of standardized cryogenic gate valves for your industrial needs.

Request a quote

Quick Detail

Type	Gate Valve
Size	3"
Pressure	150LB
Connection	RF (125~250 μin)
Operation	Handwheel
Body Material	A352 LCB
Design Norm	API 600
Pressure-Temperature	ASME B16.34
Test & lnspect	API 598
Face to Face	ASME B16.10
Flange Dimension	ASME B16.5
Temperature	-46 ~ 300°C
Applicable Medium	Water, Oil and Gas

Detail Information

3 INCH 150 LB Cryogenic Gate Valve LCB RF API 600 Handwheel OS & Y

Introduction

3 INCH 150 LB gate valve is made according to API 600 standards. The valve body is made of ASTM A352 LCB. It has the structural characteristics of a bolt cover, replaceable valve seat, elastic wedge and OS & Y. Its connection mode is RF (125-250 μin). And it has a handwheel operation mode.

Features

1. Low fluid resistance, the less external force required for opening and closing, and unrestricted flow direction of the medium;
2. The body shape and manufacturing process are relatively simple.

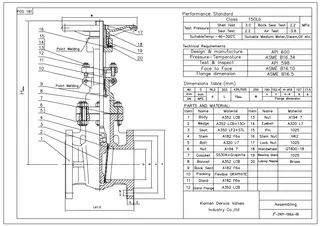

Technical Drawing
