BS 1873 Cast Steel Globe Valve, 3 Inch, 150 LB, A216 WCB, RF
Key Specifications / Features
3 Inch Class 150 LB globe valve is made according to BS 1873 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of BB, OS&Y, plug valve disc and a structural length of 305 mm. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Globe Valve |
| Size | 3 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | ASTM A216 WCB+STL |
| Design Norm | BS 1873 |
| Face to Face Dimension | Customer Requirements |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
BS 1873, RF Connection, 3 Inch 150 LB Cast Steel Globe Valve, Body WCB
Features
1. The structure is relatively simple, with fewer components, convenient maintenance, and easy maintenance and repair;
2. Cast steel materials have high strength and toughness, can withstand high pressure and high-temperature working conditions, and are suitable for various harsh usage environments.

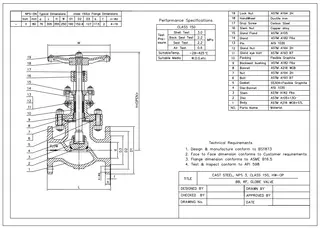

Technical Drawing

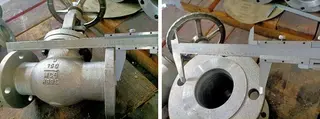

Dimension Checking

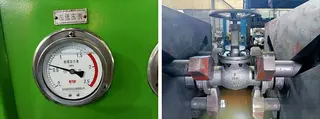

Pressure Testing

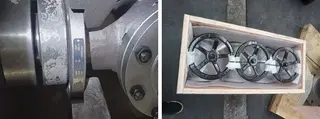

Nameplate & Packing

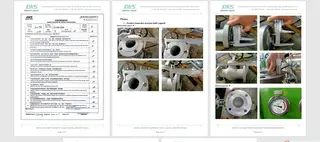

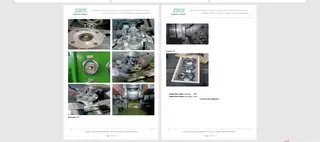

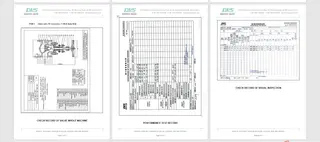

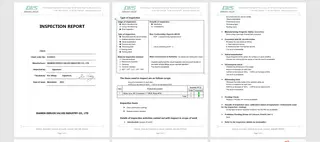

Inspection report
Features
1. The structure is relatively simple, with fewer components, convenient maintenance, and easy maintenance and repair;
2. Cast steel materials have high strength and toughness, can withstand high pressure and high-temperature working conditions, and are suitable for various harsh usage environments.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
