ASTM A352 LCC Y Strainer, 12 Inch, 1500 LB, ASME B16.34, RTJ
Key Specifications / Features
12-inch 1500 LB Y type strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A352 LCC. It has the structural characteristics of bolt cover, plug: SW connection, with DN20 1500 LB RTJ blind flange. Its connection mode is RTJ.
Request a quote
Quick Detail
Product Description
| Type | Y Type Strainer |
| Size | 12 Inch |
| Pressure | 1500 LB |
| Connection | RTJ |
| Body Material | ASTM A352 LCC |
| Design Norm | ASME B16.34 |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Painting | GP-56-02-02 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 93°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
RTJ Connection, 12 Inch 1500 LB Y Type Strainer, Body LCC, ASME B16.34
Features
1. Widely used in industries such as water treatment, petrochemicals, pharmaceuticals, food, metallurgy, etc.;
2. Low manufacturing cost, high comprehensive cost-effectiveness, suitable for large-scale applications.

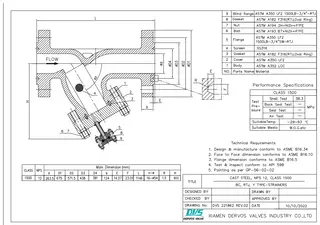

Technical Drawing

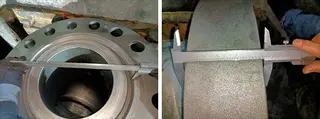

Dimension Checking

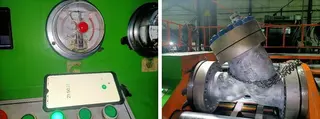

Pressure Testing

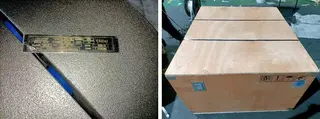

Nameplate & Packing

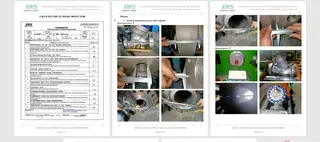

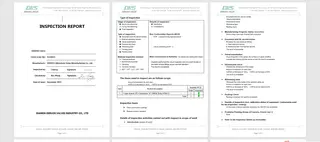

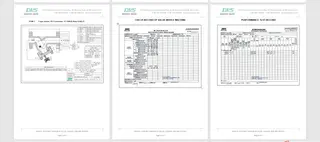

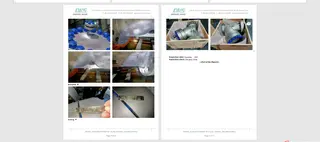

Inspection report
Features
1. Widely used in industries such as water treatment, petrochemicals, pharmaceuticals, food, metallurgy, etc.;
2. Low manufacturing cost, high comprehensive cost-effectiveness, suitable for large-scale applications.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
