ASTM A350 LF2 Trunnion Ball Valve, 10 Inch, 600 LB, API 6D, RF

Name: ASTM A350 LF2 Trunnion Ball Valve, 10 Inch, 600 LB, API 6D, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 10-inch 600-lb ball valve is made according to API 6D standards. The valve body is made of ASTM A350 LF2. It has the structural characteristics of a fixed ball, full bore, split type, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF (125 AARH). It has turbine operation mode (with a locking device).

Request a quote

Quick Detail

Product Description

Type	Ball Valve
Size	10 Inch
Pressure	600 LB
Connection	RF (125 AARH)
Operation	Turbine Operation (with locking device)
Body Material	ASTM A350 LF2
Design Norm	API 6D
Face to Face Dimensions	ASME B16.10
Flange Ends Dimensions	ASME B16.5
Fire Safe	API 607
Test & Inspection Code	API 598
Temperature	-10 - 100°C
Applicable Medium	Water, Oil and Gas

Detail Information

10 Inch 600 LB Trunnion Mounted Ball Valve RF LF2 API 6D

Features

1. The body is fixed and will not move with changes in the fluid. This design makes the operation of ball valves simpler and more controllable.;

2. Simple structure, easy installation and maintenance, widely used, long service life.

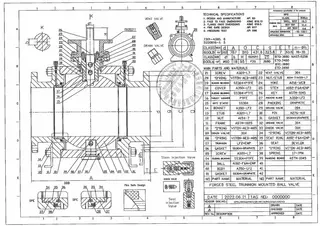

Technical Drawing
