ASTM A216 WCB Y Strainers, ASME B16.34, 6 Inches, 300 LB, RF

Name: ASTM A216 WCB Y Strainers, ASME B16.34, 6 Inches, 300 LB, RF
SKU: YST-20241123-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 6-inch Class 300 LB Y-Type Strainer is crafted in accordance with the ASME B16.34 standard. Featuring a durable ASTM A216 WCB valve body, this strainer is designed with a bolted cover and a Y-shaped strainer element with a 40 mesh filtration. The connection type is RF (Raised Face), ensuring secure and reliable integration into various pipeline systems.

Request a quote

Quick Detail

Product Description

Type	Y Type Strainer
Size	6 Inch, DN150
Pressure	Class 300 LB, PN50
Connection	RF
Body Material	ASTM A216 WCB
Design Norm	ASME B16.34
Temperature and Pressure	ASME B16.34
Face to Face Dimensions	ASME B16.10
Flange Ends Dimensions	ASME B16.5

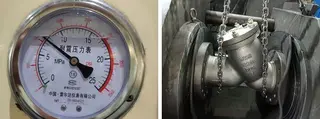

Test & Inspection Code	API 598
Temperature	-29 - +350°C
Applicable Medium	Water, Oil and Gas

Detail Information

ASME B16.34 Strainer, ASTM A216 WCB, 6 Inch, Class 300 LB.

Features

1. Versatile installation options: Can be installed both horizontally and vertically to accommodate various pipeline configurations.

2. Wide application range: Suitable for filtering a variety of fluids, including water, steam, oil, and gas, making it ideal for industrial, commercial, and civil applications.

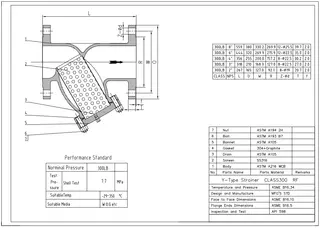

Technical Drawing
