ASTM A216 WCB Lubricated Plug Valve, API 6D, 6 Inch, 150 LB
Key Specifications / Features
6 Inch CL150 plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted and lubricated. Its connection mode is RF. And it has turbine operation mode.
Request a quote
Quick Detail
Product Description
| Type | Plug Valve |
| Size | 6 Inch |
| Pressure | CL150 |
| Connection | RF |
| Operation | Turbine Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Face to Face dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature | ASME B16.34 |
| Fire Safe | API 6FA |
| Test & Inspection Code | API 598 |
| Temperature | ≤80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
6 Inch CL150 Inverted Pressure Balance Lubricated Plug Valve RF WCB API 6D
Features
1. Reasonable structure, reliable sealing, excellent performance, and beautiful appearance;
2. It is injected with sealing grease to improve sealing performance.

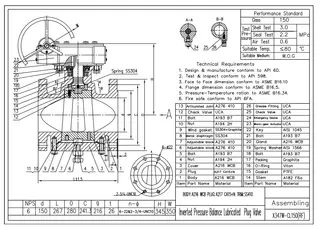

Technical Drawing

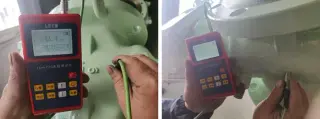

Painting

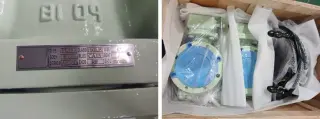

Nameplate & Packing

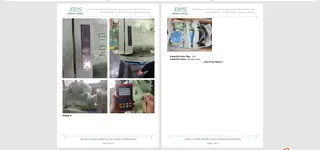

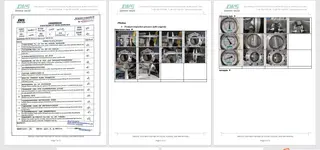

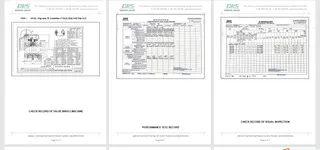

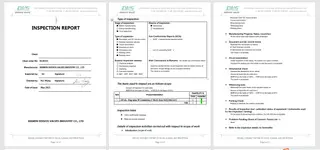

Inspection report
Features
1. Reasonable structure, reliable sealing, excellent performance, and beautiful appearance;
2. It is injected with sealing grease to improve sealing performance.
Technical Drawing
Painting
Nameplate & Packing
Inspection report
