ASTM A216 WCB Double Eccentric Butterfly Valve, 3 IN, 150 LB
Key Specifications / Features
3 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of double eccentric. Its connection mode is lug. It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Butterfly Valve |
| Size | 3 Inch |
| Pressure | 150 LB |
| Connection | Lug |
| Operation | Lever |
| Body Material | ASTM A216 WCB |
| Design Norm | API 609 |
| Face to Face Dimensions | API 609 |
| Flanged Ends | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
3 Inch 150 LB Double Eccentric Butterfly Valve WCB Lever API 609
Features
1. The structure is simple, the volume is small, and the installation is convenient, reducing the space occupation of the pipeline system;
2. Widely used in industries such as chemical, petroleum, power, and metallurgy. It can be used to regulate and intercept flow media, suitable for pipeline systems with high flow rates and low-pressure differences.

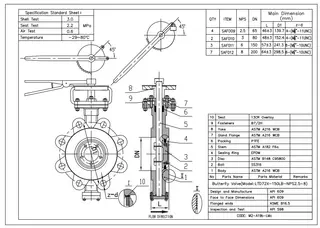

Technical Drawing

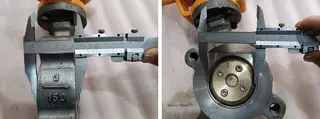

Dimension Checking

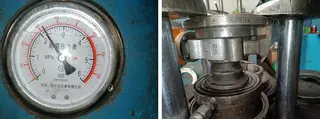

Pressure Testing

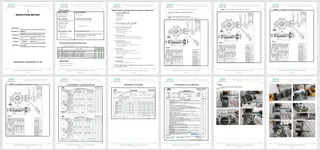

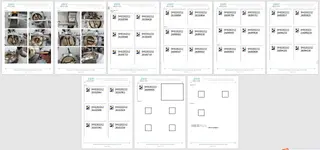

Inspection report
Features
1. The structure is simple, the volume is small, and the installation is convenient, reducing the space occupation of the pipeline system;
2. Widely used in industries such as chemical, petroleum, power, and metallurgy. It can be used to regulate and intercept flow media, suitable for pipeline systems with high flow rates and low-pressure differences.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
