ASTM A216 WCB Basket Strainer, 4 Inch, 150 LB, ASME B16.34
Key Specifications / Features
4 Inch 150 LB basket strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of basket type, single cylinder. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Basket Strainer |
| Size | 4 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | ASME B16.34 |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4 Inch 150 LB Basket Strainer RF WCB ASME B16.34
Features
1. Simple structure, easy maintenance, high filtration efficiency, and large volume.
2. Easy to operate and clean, improving work efficiency.

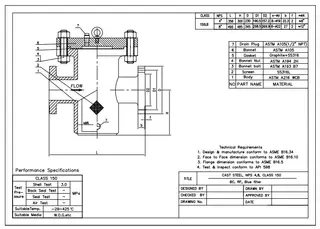

Technical Drawing

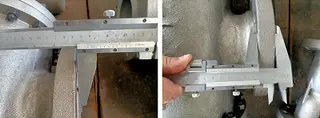

Dimension Checking

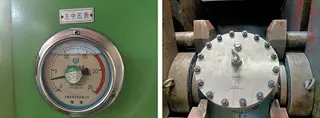

Pressure Testing

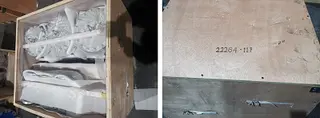

Packing

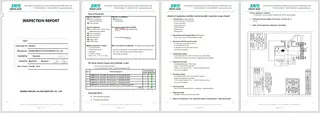

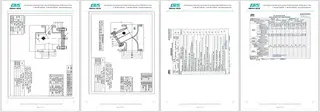

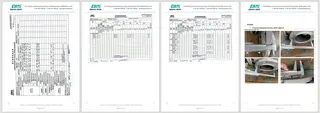

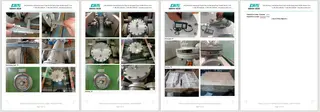

Inspection report
Features
1. Simple structure, easy maintenance, high filtration efficiency, and large volume.
2. Easy to operate and clean, improving work efficiency.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
