ASTM A182 F316 Y Strainer, 1 Inch, 300 LB, ASME B16.34, RF
Key Specifications / Features
1 Inch 300 LB Y type strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of a Y-shaped, bolt cover, and filter (100 microns). Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Y Type Strainer |
| Size | 1 Inch |
| Pressure | 300 LB |
| Connection | RF |
| Body Material | A182-F316 |
| Design Norm | ASME B16.34 |
| Face to Face | MFR Standard |
| Flange Dimension | ASME B16. 5 |
| Material | AISI, ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
ASME B16.34, RF Connection, 1 Inch 300 LB Y Type Strainer, Body F316
Features
1. The design is simple, and the filter element (filter) is located in a Y-shaped branch, making it easy to install and maintain;
2. The structural design is reasonable, and the pressure loss when the fluid passes through the filter is small, ensuring the flow rate and pressure of the system.

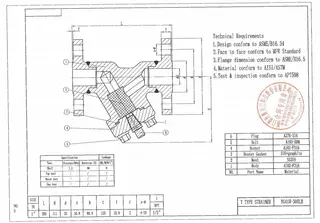

Technical Drawing

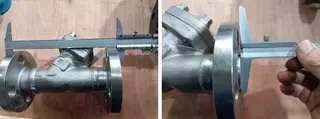

Dimension Checking

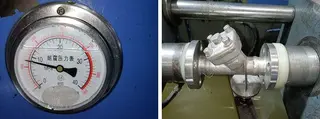

Pressure Testing

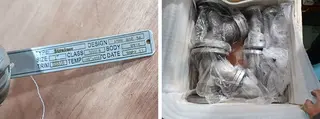

Nameplate & Packing

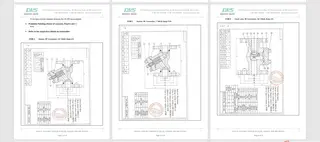

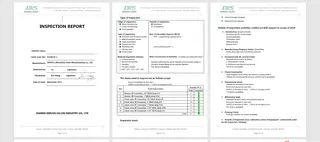

Inspection report
Features
1. The design is simple, and the filter element (filter) is located in a Y-shaped branch, making it easy to install and maintain;
2. The structural design is reasonable, and the pressure loss when the fluid passes through the filter is small, ensuring the flow rate and pressure of the system.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
