ASTM A182 F316 Floating Ball Valve, 1-1/2IN, 1000PSI, API 608
Key Specifications / Features
1-1/2 Inch 1000 PSI floating ball valve is made according to API 608 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of a 2-piece and floating ball type. Its connection mode is NPT (ASME B1.20.1). It has a lever operation mode.
Request a quote
Quick Detail
Product Description
| Type | Floating Ball Valve |
| Size | 1-1/2 Inch |
| Pressure | 1000 PSI |
| Connection | NPT (ASME B1.20.1) |
| Operation | Lever |
| Body Material | ASTM A182 F316 |
| Design Norm | API 608 |
| End to End Dimension | Manufacturer's Standard |
| Screwed End | ASME B 1.20.1 |
| Fire Safe Test | API 607 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 220°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
NPT Connection, 1-1/2 Inch 1000 PSI Floating Ball Valve, Body F316, API 608
Features
1. Excellent material quality, reasonable structure, wear resistance, long service life, and low maintenance cost;
2. The rapid closure of valves can effectively prevent water hammer and protect the safety of pipelines and equipment.

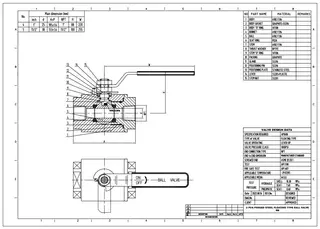

Technical Drawing

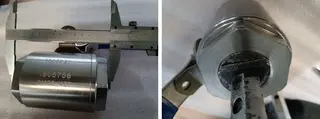

Dimension Checking

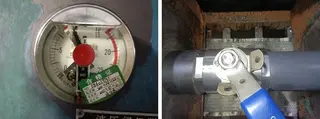

Pressure Testing

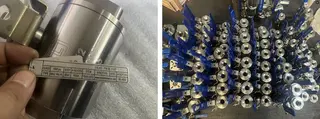

Nameplate & Packing

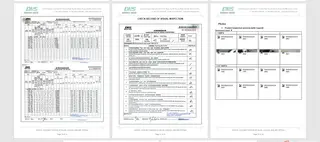

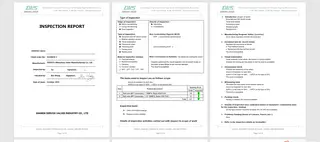

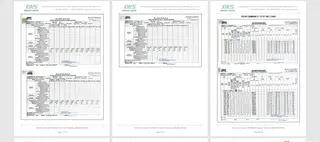

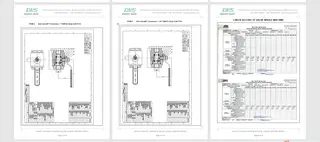

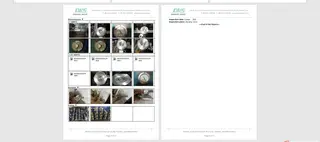

Inspection report
Features
1. Excellent material quality, reasonable structure, wear resistance, long service life, and low maintenance cost;
2. The rapid closure of valves can effectively prevent water hammer and protect the safety of pipelines and equipment.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
