API 6D Swing Check Valve, ASTM A216 WCB, 10 Inch, 600 LB, RF

Name: API 6D Swing Check Valve, ASTM A216 WCB, 10 Inch, 600 LB, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

10-inch 600 LB swing check valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a swing type and an external latch. Its connection mode is RF Flanged Ends.

Request a quote

Quick Detail

Product Description

Type	Swing Check Valve
Size	10 Inch
Pressure	600 LB
Connection	RF
Body Material	ASTM A216 WCB
Design Norm	API 6D
Face to Face Dimension	ASME B16.10
Flange Dimension	ASME B16.5
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

10 Inch 600 LB Swing Check Valve RF WCB API 6D

Features

1. All opening and closing components of the swing check valve are installed inside the valve body and do not penetrate the valve body;

2. Generally suitable for clean media, not suitable for media containing solid particles and high viscosity.

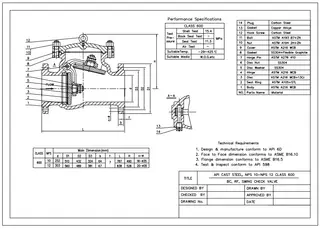

Technical Drawing
