API 599 Three Way Plug Valve, 50A, JIS 10K, A216 WCB, RF
Key Specifications / Features
50A JIS 10K plug valve is made according to API 599 standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of three-way type and L-type. Its connection mode is RF.
Request a quote
Quick Detail
Product Description
| Type | Plug Valve |
| Size | 50A |
| Pressure | JIS 10K |
| Connection | RF |
| Body Material | A216 WCB |
| Design Norm | API 599 |
| End Flange Dimensions | JIS B2220 |
| Face to Face | ASME B16.10 |
| Pressure-Temp | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | ≤ 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
50A JIS 10K Three Way Plug Valve RF WCB API 599
Features
1. Low fluid resistance, suitable for frequent operation, quick and lightweight opening and closing;
2. Simple structure, relatively small volume, lightweight, and easy maintenance.

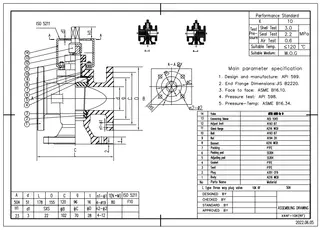

Technical Drawing

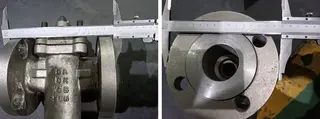

Dimension Checking

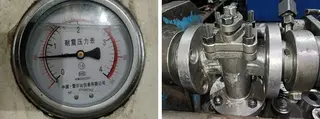

Pressure Testing

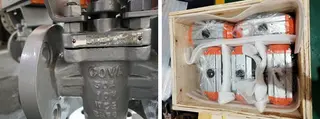

Nameplate & Packing

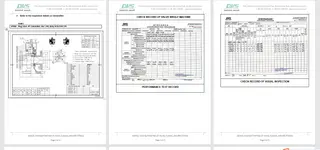

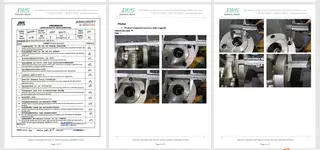

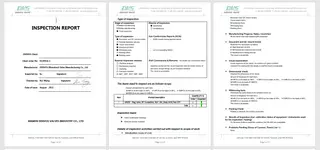

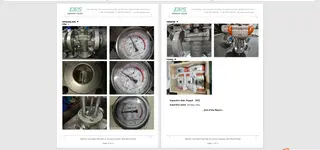

Inspection report
Features
1. Low fluid resistance, suitable for frequent operation, quick and lightweight opening and closing;
2. Simple structure, relatively small volume, lightweight, and easy maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
