3000 PSI Lubricated Plug Valve, API 6D, ASTM A105, 1 IN, NPT
Key Specifications / Features
The 1 Inch 3000 PSI lubricated plug valve is manufactured in compliance with the API 6D standard. Constructed with an ASTM A105 valve body, it features an inverted pressure balance design. The connection type is NPT, and it operates using a lever mechanism.
Request a quote
Quick Detail
| Type | Lubricated Plug Valve |
| Size | 1 Inch, DN25 |
| Pressure | 3000 PSI |
| Connection | NPT |
| Operation | Lever |
| Body Material | ASTM A105, Carbon Steel |
| Design Norm | API 6D |
| Test & Inspection Code | API 598 |
| Face to Face Dimension | Plant Standard |
| Flange Dimension | ASME B1.20.1 |
| Pressure-Temperature | ASME B16.34 |
| Fire Safe | API 6FA |
| Temperature | ≤ 80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
On this page
ASTM A105 Lubricated Plug Valve, 3000 PSI, 1 Inch/DN50, Carbon Steel, NPT.
2. Robust Structure and Durable Materials: Designed for long-term stable operation, reducing maintenance frequency and associated costs.
Features
1. Bidirectional Sealing Function: Ensures medium flow from both directions, effectively preventing reverse flow.2. Robust Structure and Durable Materials: Designed for long-term stable operation, reducing maintenance frequency and associated costs.

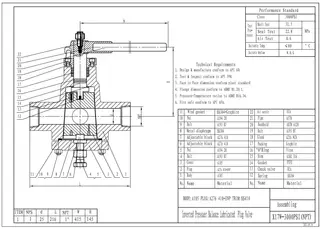

Technical Drawing

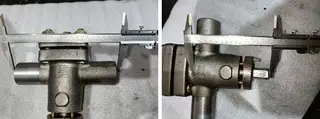

Dimension Checking

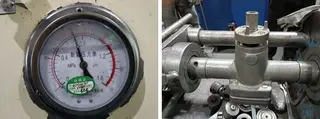

Pressure Testing

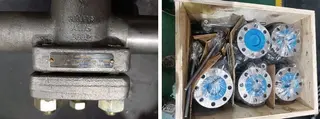

Nameplate & Packing

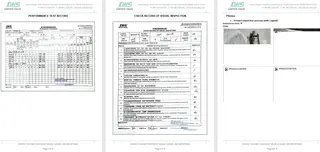

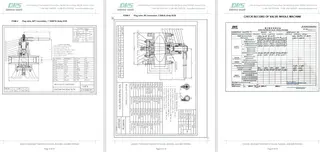

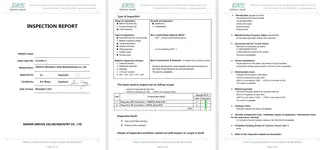

Inspection Report
