2-PC Forged Steel Floating Ball Valve, A105, 1IN, CL150, RF
Key Specifications / Features
The 1-inch 150-lb floating ball valve is designed per ASME B16.34 standards, featuring a durable A105 body for enhanced strength and reliability. This valve showcases a 2-piece construction, with a floating ball design that allows for full-bore flow, ensuring optimal performance. Built with fireproof capabilities and anti-static features, it provides added safety in demanding environments. The valve is equipped with raised face (RF) connections for secure installation and operates via a lever with a locking device for precise control and ease of use.
Request a quote
Quick Detail
| Type | Floating Ball Valve |
| Size | 1 Inch, DN25 |
| Pressure | CL 150 LB, PN16 |
| Connection | RF |
| Operation | Lever (with locking device) |
| Body Material | ASTM A105 |
| Design Norm | ASME B16.34 |
| End to End Dimension | ASME B16.10 |
| Flange End | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Fire Safe Test | API 607 |
| Temperature | -29°C to 150°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
On this page
Floating Ball Valve, Forged Steel, ASME B16.5, RF Flanged.
2. With fewer moving parts, maintenance and repairs are made easier, leading to reduced operational and maintenance costs.
Features
1. The design features a straightforward structure that simplifies manufacturing and maintenance, ensuring intuitive operation.2. With fewer moving parts, maintenance and repairs are made easier, leading to reduced operational and maintenance costs.

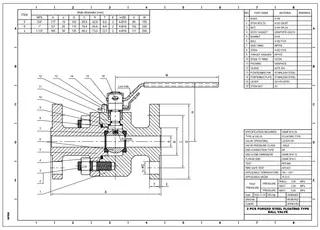

Technical Drawing

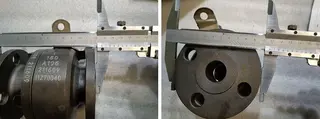

Dimension Checking

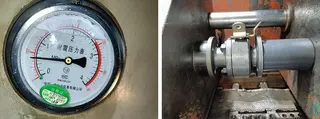

Pressure Testing

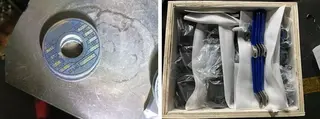

Nameplate & Packing

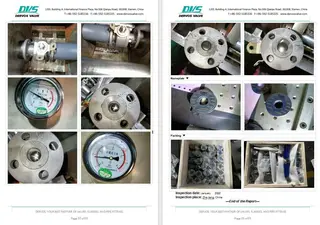

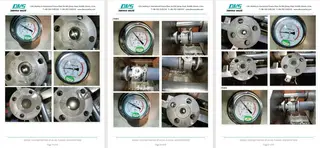

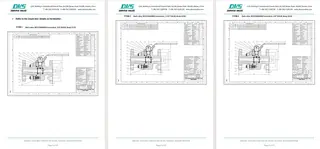

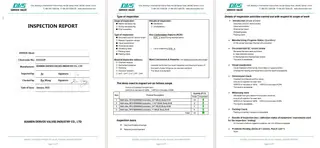

Inspection Report
