WD+ ENERGY CONTROLLER SELECTION GUIDE

Name: WD+ ENERGY CONTROLLER SELECTION GUIDE
SKU: WD+ PLC Series
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

WD+ PLC1.0 adopt Smartgen HGM6110N as standard controller;WD+ PLC2.0 adopt Deepsea HGM7310MKII as standard controller;WD+ PLC3.0 adopt Deepsea HGM8610MKII as standard controller;

Request a quote PDF

Detail Information

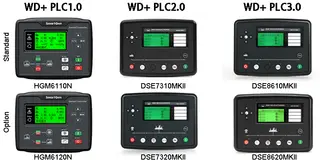

CONTROLLER SELECTION TABLE
CONTROLLER SPECIFICATION
Model Function		WD⁺ PLC1.0		WD⁺ PLC2.0		WD⁺ PLC3.0
		HGM6110N	HGM6120N	DSE7310MKII	DSE7320MKII	DSE8610MKII	DSE8620MKII
		HGM6110N	HGM6120N	DSE7310MKII	DSE7320MKII	DSE8610MKII	DSE8620MKII
		Standard	Option	Standard	Option	Standard	Option
Manufacturer		SMARTGEN		DEEPSEA
AMF		×	●	×	●	Auto Start	●
ECU		○	○	●	●	●	●
Cummunication Port		USB		RS232/485/USB		RS232/485/USB/ Ethernet
Cummunication Port		USB		RS232/485/USB		RS232/485/USB/ Ethernet
Monitor Function	Generator Set Voltage	●	●	●	●	●	●
	Generator Set Current	●	●	●	●	●	●
	Generator Set Frequency	●	●	●	●	●	●
	Generator Set Speed	●	●	●	●	●	●
	Generator Set Output Power	●	●	●	●	●	●
	Generator Set Power Factor	●	●	●	●	●	●
	Generator Set Run Hours	●	●	●	●	●	●
	Oil Pressure	●	●	●	●	●	●
	Water Temperature	●	●	●	●	●	●
	Battery Voltage	●	●	●	●	●	●
	Fuel Level	●	●	●	●	●	●
	Mains Voltage	×	●	×	●	●	●
	Mains Frequency	×	●	×	●	●	●
	Mains Current	×	●	×	●	●	●
	Synchronising	×	×	×	×	●	●
	Mains Parallel Operation	×	×	×	×	●	●
Protection	Low Oil Pressure	●	●	●	●	●	●
	Water Temperature High	●	●	●	●	●	●
	Over Speed	●	●	●	●	●	●
	Battery Charge Failure	●	●	●	●	●	●
	Reverse Power	×	×	×	×	●	●
Application		×	AMF+ATS	×	AMF+ATS	Multiple Island or Single Parallel to Mains	Single Parallel to Mains




● Standard ○Optional ×Impossible
