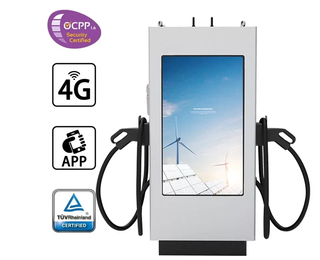

EV Fast Charger, OCPP1.6J, 200V-1000V, 50Hz-60Hz, 60kW-240kW
Key Specifications / Features
As a leading floor-mounted EV fast charger manufacturer in China, we offer high-performance chargers ranging from 60kW to 240kW. Our chargers feature CCS1 and CCS2 connectors and support a 3P+N+PE input connection with 50Hz/60Hz frequency. With an output range of 200V to 1000V and an IP55 protection rating, our chargers are built for durability and efficiency. Equipped with dual charging ports and intelligent load balancing, they allow for the simultaneous charging of two electric vehicles, ensuring optimal power distribution and reduced charging times.
Request a quote
Detail Information
OCPP1.6J Floor Mounted EV Charger, 60kW-240kW, CCS1, CCS2, 200V-1000V Output.
Product Specification
Product Specification
| Input Rating: | AC 400V(±15%) 3 Phase |
| AC Input Connection: | 3P+N+PE |
| Rate Input Current: | 3φ100A |
| Frequency: | 50Hz/60Hz |
| IP protection: | IP55 |
| Enclosure Protection: | IK10 |
| Power Factor: | ≥0.99 |
| Efficiency: | ≥95% |
| Output Voltage Range: | 200V-1000V |
| Max. Output Current: | 200A (system) |
| Max. Output Power: | DC 60kW |
| Voltage Accuracy: | ≤±0.5% |
| Current Accuracy: | ≤±1% |
| Communication: | External: Ethernet, WIFI, 3G/4G Internal: CAN, RS485, RS232 |
| Operating Temperature: | -30°C - +50°C |
| Humidity: | <95% relative humidity, non-condensing |
| Working Altitude: | ≤2000m (6000 feet) |
| Cooling: | Air Forced |
| Installation Method: | Floor Mounted |
| Certificate: | CE/CB/TUV |
| Standard: | EN IEC-61851-1:2019; EN61851-23:2014; EN 61851-24:2014;EN IEC 61851-21-2:2021 |
