50kW Diesel Generator Set, Cummins 4BTA3.9G2, 60 Hz, Trailer

Name: 50kW Diesel Generator Set, Cummins 4BTA3.9G2, 60 Hz, Trailer
SKU: CGS-20250314-TMGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

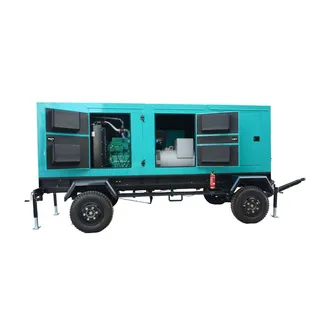

This 50kW diesel generator set is a versatile and reliable power solution, equipped with a high-performance Cummins 4BTA3.9G2 engine and a durable Stamford UCI224D alternator. Operating at a frequency of 60 Hz, it provides a stable output of 220/127 volts, with a rated current of 164.0 amperes. The generator is mounted on a trailer, offering excellent mobility and ease of transportation, making it suitable for a wide range of applications, including construction sites, outdoor events, and emergency backup power.

Request a quote

Detail Information

Product Name: Cummins 50kW Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Engine: Cummins 4BTA3.9G2
Alternator: Stamford UCI224D
Frequency: 60 Hz
Rated Power: 50kW, 63kVA
Maximum Power: 55kW, 69kVA
Rated Voltage: 220/127 V
Rated Current: 164.0 A
Dimension (Trailer Type): 2420 x 1050 x 2300 mm
Weight: 1900 kg

Cummins Diesel Engine Specifications

Brand	Cummins
Model	4BTA3.9G2
Cylinders	4 Cylinders, Inline
Aspiration	Turbocharged & Aftercooled
Governor Type	Electric
Max. Output Power	66 kW
Displacement	3.9 L
Starting Voltage	24 V
Bore x Stroke	102 mm x 120 mm
Lubrication Oil Capacity	11 L

Stamford Alternator Specifications

Brand	Stamford
Model	UCI224D
Rated Output	65kVA
Frequency	60 Hz
Altitude	≤1000 m
Insulation Class	Class H
Voltage Regulation	AVR Model SX460
Protection Grade	IP23
Optional Alternators	Leroy Somer, Marathon, Mecc Alte, Brushless

Key Features of Trailer Generator

Double Axle Trailer for smooth and safe transportation.
Weatherproof or Soundproof Canopy for outdoor and low-noise operation.
Built-in Fuel Tank for over 10 hours of continuous operation.
Wide Capacity Range: 8 kVA to 688 kVA with engines from Cummins, Perkins, Deutz (Germany), and Volvo (Sweden).
Cooling Options: Water-cooled or air-cooled (Deutz engine models 23kVA to 55kVA only).

Advanced Control Panel Features

Automatic Start Control Panel for auto start/stop, data measurement, and alarms.
Battery Charger (208-240V input range).
On/Off Switch for simple operation.
Emergency Stop Button for safety.
