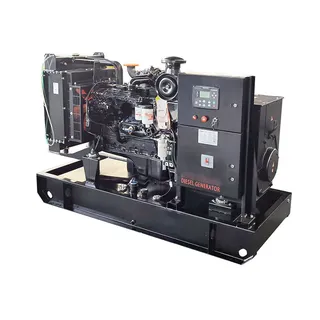

350kW Diesel Generator Set, Cummins KTA19-G2, 240 V, 601 A

Name: 350kW Diesel Generator Set, Cummins KTA19-G2, 240 V, 601 A
SKU: CGS-20250310-DGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Cummins Diesel Generator Set features the Cummins KTA19-G2 engine, a reliable and powerful unit designed for high performance. It operates at 60 Hz and 240 V, delivering a rated power of 350kW (438kVA) with a current output of 601 amps. The generator set is equipped with a Stamford UCI444E alternator, ensuring efficient and stable power generation. This combination makes it ideal for various industrial applications, providing robust and dependable power solutions.

Request a quote

Detail Information

Product Item: 350kW 438kVA Diesel Generator Set
Fuel Type: Diesel
Engine: Cummins KTA19-G2
Alternator: Stamford UCI444E
Controller: Deepsea DSE7320
Prime Power: 350kW, 438kVA
Standby Power: 400kW, 500kVA
Power Factor: 0.8
Frequency: 60 Hz
Rated Speed: 1800 RPM
Output Voltage: 240 V
Rated Current: 601 Amps
Oil Consumption: 0.415 L/H
Dimension: 3315 * 1100 * 1650 mm
Weight: 3750 kg

Engine Specifications

Engine Brand	Cummins
Engine Model	KTA19-G2
No. of Cylinders	6 Cylinders (Inline)
Bore × Stroke	159 mm × 159 mm
Displacement	18.9 L
Cooling Fan Air Flow	588 m³/min
Compressed Air Flow	34.7 m³/min
Exhaust Gas Flow	96.2 m³/min
Exhaust Gas Temperature	557°C
Lubrication Oil Capacity	50 L
Cooling Water Capacity	91 L
Starting Voltage	24 V
Engine Max. Output Power	448 kW

Alternator Specifications

Brand	Stamford
Alternator Model	UCI444E
Rated Output	440kVA
Frequency	60 Hz
Altitude	≤ 1000 m
Insulation Class	H
Protection Grade	IP23
Optional Alternator Brands	Leroy Somer, Marathon, Mecc Alte, Chinese Brushless Alternator

Control Panel Functions

Automatic Genset Start/Stop	Automatically starts and stops the generator as needed.
Automatic Battery Charger	Charges the battery automatically to maintain optimal levels.
Emergency Stop	Provides immediate shutdown in emergency situations.
AMF (Automatic Mains Fault)	Detects utility failure and starts the generator automatically.
Remote Control	Enables remote operation and monitoring of the generator.
Microprocessor-Based Design	Ensures high reliability and intelligent control.
LED Alarm Indication and Sound Alarm	Visual and audible alarms for fault notification.

Diesel Generator Protections

Over/Under Speed	Alarm and shutdown if engine runs outside speed limits.
Start/Stop Failure	Alarm if engine fails to start or stop properly.
Over Current	Alarm and shutdown on excessive current draw.
Under/Over Generator Voltage	Alarm and shutdown on abnormal voltage levels.
Low Oil Pressure	Alarm and shutdown when oil pressure drops below safe limits.
High Engine Temperature	Alarm and shutdown to prevent overheating damage.
Over Load	Alarm and shutdown if load exceeds generator capacity.
Low and High Battery Voltage	Alarm on abnormal battery voltage.
Loss of Speed Signal	Alarm and shutdown on failure of speed sensing.
Charge Fail	Alarm if battery fails to charge properly.
