1200kW Container Generator Set, Yuchai YC12VC2070-D31, 2176A

Name: 1200kW Container Generator Set, Yuchai YC12VC2070-D31, 2176A
SKU: CGS-20250312-CGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Yuchai Diesel Generator Set Factory offers a powerful and reliable containerized solution featuring the YC12VC2070-D31 12-cylinder engine. This generator set provides a rated power of 1200kW (1500kVA), operating at 50Hz with a voltage of 400/230V and delivering a current of 2176A at 1500RPM. Its containerized design ensures easy transportation and installation, making it ideal for industrial applications requiring high power output and durability.

Request a quote

Detail Information

Product Name: 1200kW 1500kVA Containerized Generator Set, Soundproof
Fuel Type: Diesel

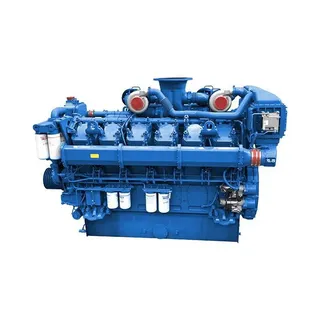

Engine Model: Yuchai YC12VC2070-D31
Cylinder Number: 12 Cylinders Inline
Phase/Wire: 3 Phase 4 Wires
Rated Power: 1200kW, 1500kVA
Standby Power: 1350kW, 1650kVA
Rated Voltage: 400/230V
Rate Current: 2176 A
Rated Speed/Frequency: 1500 RPM/50Hz
Battery Rating Capacity: 4 * 200AH 12V
Dimension(L×W×H): 5446*1650*2218 mm
Weight: 13112 kg

Engine Data

Engine Brand	Yuchai
Engine Model	YC12VC2070-D31
Prime Power	1380kW, 1725kVA
Standby Power	1520kW, 1900kVA
Number of Cylinders & Configuration	12 cylinders in line
Bore x Stroke	200 mm *210 mm
Displacement	79.17 L
Compression Ratio	13.5:1
Governor Type	Electric start
Rated RPM	1500

Generator Set Systems

Exhaust System	Exhaust Gas Flow	33 m³/min
	Max. Exhaust Gas Temperature	550 °C
	Max. Exhaust Back Pressure	10 kPa
Air Intake System	Aspiration Type	Turbocharged intercooler
	Max. Intake Depression	12 kPa
	Combustion Air Volume	33 m³/min
Fuel System	Rating Fuel Consumption	50.4 L/h
Fuel System	75% Full Fuel Consumption	37.4 L/h
Lubrication System	Total Oil Capacity	21 L
	Max. Permissible Oil Temperature	97 °C
	Oil Pressure at Rated RPM	345-413 kPa
Cooling System	Total Coolant Capacity	10 L
	Max. Temperature of Coolant	550 °C
	Fan Cooling Air Flow	125 m³/min

Alternator Data

Rating Voltage	400/230 V
Rating Capacity	1200kW, 1500kVA
Efficiency	87.5%
Power Factor	0.8
Exciting Type	Brushless self-exciter, AVR
Voltage Regulation	±0.5%
Number of Phases	3 phase, 4 wire
Enclosure Class	IP23
Class of Insulation	H
