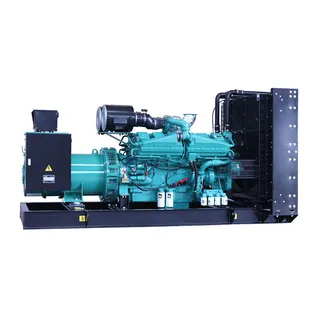

1000kW Container Generator Set, Cummins KTAA38-G9A, 400/230V

Name: 1000kW Container Generator Set, Cummins KTAA38-G9A, 400/230V
SKU: CGS-20250311-CGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Outdoor Diesel Generator Set Manufacturer offers a robust and low-noise power solution with a container-type design. It features the Cummins KTAA38-G9A Engine, delivering a rated power of 1000kW (1250kVA) at 50 Hz. The generator provides a voltage output of 400/230 V and a current capacity of 1804 A, making it ideal for large-scale industrial applications requiring reliable and efficient power in outdoor environments.

Request a quote

Detail Information

Product Name: 1000kW Containerized Generator Set for Outdoor Activities
Fuel: Diesel
Engine: Cummins KTAA38-G9A
Alternator: Stamford LVI634G
Rated Power: 1000kW, 1250kVA
Standby Power: 1100kW, 1375kVA
Rated Current: 1804 A
Rated Voltage: 400/230 V
Power Factor: 0.8
Frequency: 50 Hz
Phases: 3 Phase, 4 Wire
Battery Capacity: 4 x 150 AH (12V each)
Dimensions (L x W x H): 4800 * 1950 * 2300 mm
Net Weight: 9850 kg
Noise Level: ≤70dB

Diesel Engine Specifications

Engine Brand	Cummins (CCEC)
Engine Model	KTAA38-G9A
Rated Power / Speed:	1195 kW @ 1500 RPM
Cylinder Configuration	4 Cycle, 12 cylinders, 60° Vee
Bore x Stroke	159 x 159 mm
Displacement	37.8 L
Compression Ratio	13.0:1
Governor Type	Electronic Governor
Aspiration Method:	Turbocharged & Air – Air Intercooler
Emission Standard:	Euro II
Packing Size (L * W * H):	2341 mm * 1360 mm * 1653 mm
Dry Weight:	3798 kg

Generator Set Systems

System	Item	Specification
Exhaust System	Exhaust Gas Flow (m³/min)	245
	Max. Exhaust Gas Temperature (°C)	460
	Max. Exhaust Back Pressure (kPa)	10
Air Intake System	Aspiration Type	Turbocharged & Air-Air Cooled
	Max. Intake Depression (mbar)	6
	Combustion Air Volume (m³/min)	91
Fuel System	Rated Fuel Consumption (L/h)	233
Fuel System	75% Load Fuel Consumption (L/h)	235
Lubrication System	Total Oil Capacity (L)	135
	Max. Oil Temperature (°C)	121
	Oil Pressure at Rated RPM (kPa)	241 - 345
Cooling System	Total Coolant Capacity (L)	308
	Max. Coolant Temperature (°C)	100
	Fan Cooling Air Flow (m³/min)	1380

Alternator Specifications

Alternator Brand	Stamford
Alternator Model	LVI634G
Rated Capacity	1000kW, 1250kVA
Efficiency	95.1%
Excitation Type	Brushless Self-exciter AVR
Voltage Regulation	±0.5%
Insulation Class	H
Enclosure Protection	IP23
Number of Phases	3 Phase, 4 Wire
