Pneumatic Ventilation Butterfly Control Valve, DN100-DN1200
Key Specifications / Features
Discover our high-performance Pneumatic Ventilation Butterfly Control Valve, available with electric actuators in durable cast iron and stainless steel. Suitable for DN100-DN1200 (2-48 inch) applications, and featuring wafer and flange end connections. The design includes a significant expansion gap between the butterfly plate and valve body, preventing jamming from thermal expansion and contraction. Compatible with various actuating devices—manual, worm gear, pneumatic, and electric—these valves excel in industrial pipelines for gold control, chemical engineering, electric power, building materials, and mining. They offer reliable control and regulation of medium gas, ensuring optimal performance in diverse applications.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Ventilation Butterfly Control Valve
Size Range: 2-48 Inch, DN100-DN1200
Operating Pressure: 0.05 MPa to 0.6 MPa
Body Material: Cast Iron
Stem Material: Cast Iron
Sealing Material: PTFE, PPL, NBR
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Structure: Midline Structure, A-type
Product Name: Pneumatic Ventilation Butterfly Control Valve
Size Range: 2-48 Inch, DN100-DN1200
Operating Pressure: 0.05 MPa to 0.6 MPa
Body Material: Cast Iron
Stem Material: Cast Iron
Sealing Material: PTFE, PPL, NBR
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Structure: Midline Structure, A-type

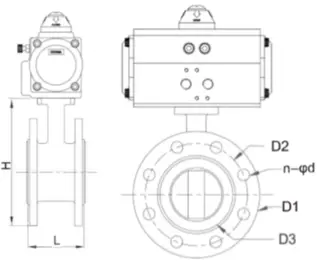

Drawing of Pneumatic Butterfly Control Valve
