Double Acting Pneumatic Ball Control Valve, DN50, PN16, CF8
Key Specifications / Features
Presenting our Double Acting Pneumatic Ball Control Valve, meticulously crafted for seamless performance. This one-piece valve, available in 2-way configuration and sizes ranging from 1/2 to 4 inches (DN15-DN100), caters to a variety of applications. With robust pressure ratings from PN10 to PN64 and Class 150 LB to 400 LB, it ensures reliability under varying pressures. Constructed from premium ASTM A351 CF8 stainless steel, it guarantees exceptional durability and corrosion resistance. Equipped with flanged ends, installation and maintenance are simplified. Experience superior control and longevity with our valve, ideal for diverse industrial settings.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Double Acting Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: ASTM A351 CF8, Stainless Steel
Valve Ball: Stainless Steel
Sealing Material: PTFE
End Connection: Flange
Working Temperature: -29°C to 178°C
Media: Water, Oil, Gas, Air
Product Name: Double Acting Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: ASTM A351 CF8, Stainless Steel
Valve Ball: Stainless Steel
Sealing Material: PTFE
End Connection: Flange
Working Temperature: -29°C to 178°C
Media: Water, Oil, Gas, Air

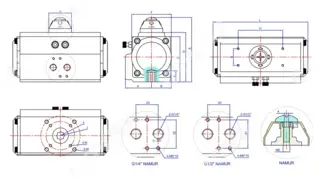

Drawing of Pneumatic Ball Control Valve
