3 Way Pneumatic Ball Control Valve, 1/4-2 Inch, PN100-PN400

Name: 3 Way Pneumatic Ball Control Valve, 1/4-2 Inch, PN100-PN400
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our 3-Way Pneumatic Ball Control Valve is engineered for exceptional performance and versatility. Featuring spring return and double-acting options, this valve is available in sizes 1/4 to 2 inches with pressure ratings from PN100 to PN400. Constructed from durable stainless steel 304, it boasts female thread ends for easy integration into various systems. The valve's design ensures reliable operation, with a compact structure and quick actuation, making it ideal for precise flow control in high-pressure applications. Benefits include robust construction, excellent sealing performance, easy maintenance, and suitability for diverse industrial environments, enhancing operational efficiency and safety.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3 Way Pneumatic Ball Control Valves
Key Features: Spring Return, Double Acting, 3 Way, High Pressure.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN100-PN400, Class 600 LB - 2500 LB
Body Material: Stainless Steel 304, 316
Sealing Material: PTFE
Working Temperature: -10°C to 180°C
End Connection: Female Thread
Media: Water, Oil, Air, Gas, etc.

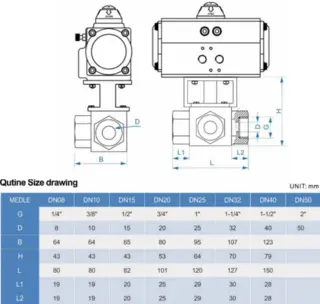

Dimension of Pneumatic Ball Control Valve

Drawing of Pneumatic Ball Control Valve

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
