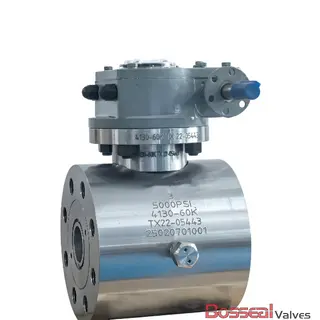

Compact Ball Valves, API 6A/API 6D, A694 F65, 6-3/8 IN, RTJ

Name: Compact Ball Valves, API 6A/API 6D, A694 F65, 6-3/8 IN, RTJ
SKU: CBV-181105060
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our compact ball valves from China are designed for demanding industrial applications, meeting API 6A and API 6D standards. Constructed with a durable ASTM A694 F65 or AISI 4130 body and precision F51 or 17-4PH trim, these valves offer exceptional strength, corrosion resistance, and reliability. With a 6-3/8-inch size and a 5000 PSI pressure rating, they are suitable for high-pressure oil, gas, and petrochemical pipelines. Available with RTJ or butt-weld (BW) end connections, these valves feature either soft seats for tight sealing or metal seats for extreme durability, ensuring long-term performance and precise flow control.

Request a quote

Detail Information

Valve Description:
181105060 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
