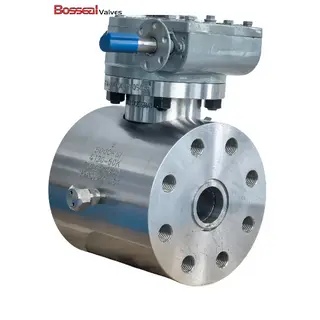

API 6D Forged Ball Valves, A694 F60/F65, 5-1/8 IN, 2500 PSI

Name: API 6D Forged Ball Valves, A694 F60/F65, 5-1/8 IN, 2500 PSI
SKU: BV-181105072
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We are a professional forged ball valve factory from China, specializing in high-performance valves for demanding industrial applications. Our forged ball valves are designed to API 6D standards and feature durable ASTM A694 F60/F65 bodies with sizes up to 5-1/8 inches and pressure ratings of 2500 PSI. Equipped with precision 17-4PH or Inconel trims, these valves ensure long-lasting reliability and excellent corrosion resistance. Available with soft seats for tight shutoff or metal seats for high-temperature and abrasive media, and offered with RTJ or butt-weld ends, our valves deliver superior performance and robust flow control for oil, gas, and industrial pipelines.

Request a quote

Detail Information

Valve Description:
181105072 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
