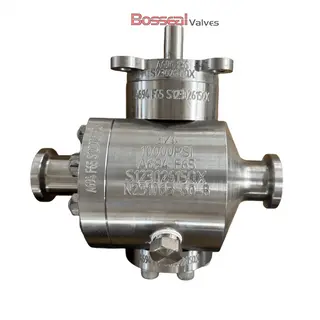

API 6A Trunnion Ball Valves, A694 F60/F65, 7-1/8 IN, 3000 PSI

As a leading trunnion ball valve supplier in China, we offer high-performance valves designed to API 6A standards. This 7-1/8 inch valve is built for 3000 PSI service and features a durable body made from ASTM A694 F60, F65, or AISI 4130 alloy steel. The bolted bonnet design ensures secure sealing and easy maintenance, while gear operation provides smooth, reliable control. Engineered for demanding oil and gas environments, this valve delivers dependable performance under high-pressure conditions and is ideal for upstream, midstream, and other critical applications.

Valve Description:
181104036 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
Integrated anti-static devices
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Ensures bubble-tight shutoff for reliable sealing
