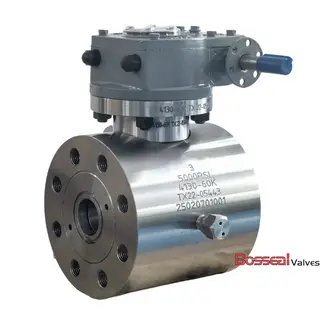

Alloy Steel Compact Ball Valves, API 6D, 4130, 2500 PSI, BW

Name: Alloy Steel Compact Ball Valves, API 6D, 4130, 2500 PSI, BW
SKU: BV-181105083
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading compact ball valve provider in China, we offer high-performance valves designed for demanding industrial applications. Constructed from durable alloy steel and built to API 6D and API 6A standards, these valves ensure exceptional reliability and long-term performance. The bodies are made from ASTM A694 F65/AISI 4130, while the AISI 4140/F51 trim provides superior strength and corrosion resistance. Sized at 6-3/8 inches and rated for 2500 PSI, the valves feature soft seats for tight sealing and versatile connection options, including RTJ and BW ends. They deliver precise, durable, and safe operation in critical pipelines.

Request a quote

Detail Information

Valve Description:
181105083 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
