3-Piece Manual Ball Valves, ASTM A105N, 40 IN, 2500 LB, BB
Key Specifications / Features
We are a renowned manufacturer of API 6D trunnion ball valves from China, built to BS 5351 standards. Our valves are made from carbon steel ASTM A105N and feature a 40-inch size with a 2500 LB rating. They include a bolted bonnet, soft seat, and RTJ flanged connections. For enhanced safety, our valves come with an anti-blowout stem to prevent stem ejection under pressure. Additionally, the optional Double Isolation & Bleed (DIB) functionality provides two seating surfaces for superior isolation and safety.
Request a quote
Detail Information
On this page
ASTM A105N Trunnion Ball Valve, 40 Inch, Class 2500 LB, Bolted Bonnet, RTJ Flanged.
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 40 Inch
Nominal Class: 2500 LB, PN420
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Body Material: ASTM A105N or ASTM A350 LF2
End Connection: RTJ Flanged
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

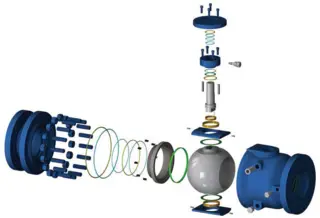

2pc Casting Body Side Entry Ball Valve
Valve Description
1811194 Trunnion Mounted Ball ValveDesign Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 40 Inch
Nominal Class: 2500 LB, PN420
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Body Material: ASTM A105N or ASTM A350 LF2
End Connection: RTJ Flanged
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Product Range
| Body material: | Carbon Steel, Stainless Steel, Alloy Steel |
| Normal diameter: | 1/2 - 48 Inch (DN15 - DN1200) |
| Pressure range: | Class 150 - 2500 LB |
| Working temperature: | -26°C - +150°C |
| Operation: | Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| End connection: | RF, RTJ, BW, HUB |
| Body Structures: | End Entry, Top Entry(easy for on-line maintenance) |
| Body Types: | 2pc split body, 3pcs split body |
| Body&Bonnet Connection: | Bolted Bonnet, Full Welded Bonnet(for Hazardous service need longer working life with less leakage point) |

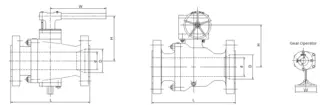

2pc Casting Body Side Entry Ball Valve
