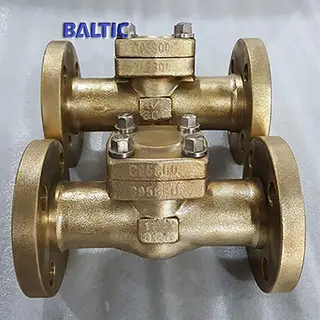

Forged Steel Swing Check Valve, 1.5 Inch, 150 LB, API 602, RF
Key Specifications / Features
China Forged Steel Swing Check Valve Factory Offers Forged Steel Swing Check Valve, 1.5 Inch, Class 150 LB, API 602, RF Ends, FF ASME B16.10.
Request a quote
Detail Information
Name: Small size check valve, SWING type.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1.5 Inch.
Nominal class: 150 LB.
Connection ends: RF integral flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 1.5 Inch.
Nominal class: 150 LB.
Connection ends: RF integral flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Small size check valve |
| Nominal diameter | 1/4” ～ 2” |
| Design temp. | -196℃ ～ 593℃ |
| Design pressure | Class 150 ～ 2500 |
| Material | Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy |
| Design standard | API 602, BS5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, RF, RTJ |
| Test standard | API 598, ISO 5208 |
| Operation | x |
| Application | Power station, petroleum, tap water engineering, chemical engineering, |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | Swing type, lift type |
| Function 3 | full bore, reduce bore |
| Function 4 | Integral flanged ends, welded on flanged ends |
