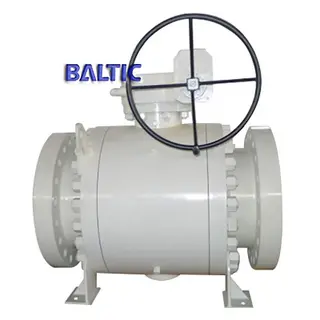

3-PC Trunnion Mounted Ball Valve, Side Entry, GS-C25, DN800 PN16 RF

Name: 3-PC Trunnion Mounted Ball Valve, Side Entry, GS-C25, DN800 PN16 RF
SKU: 1-1
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China 3-PC Trunnion Mounted Ball Valve Factory Supplies Trunnion Mounted Ball Valve, Side Entry, GS-C25 (1.0619), API 6D, DN800, PN16, RF Ends.

Request a quote

Detail Information

Valve description:
Name: Side entry trunnion mounted ball valve, 3-PC type.
Design: API 6D.
Body: GS-C25 (1.0619).
Nominal size: DN800.
Nominal class: PN16.
Connection ends: RF flanged ends.
Face to face: as per EN558-1/line 1.
Test and inspection: EN12266-1.

Technical parameters and characteristics

Product	Side Entry Trunnion Mounted Ball Valve
Nominal diameter	2" - 56"	(DN50-DN1400)
Design temp.	-46℃ - 121℃
Design pressure	class 150 - 2500	(PN16-PN420)
Material	WCB, LCB, CF8M, A105, LF2, F316
Design standard	API 6D, ISO 17292
Face to face	ASME B16.10	EN558 series
Connection end	ASME B16.5, ASME B16.25	EN1092-1 series
Test standard	API 598, API 6D	EN 12266-1
Operation	level, worm gear, electric, pneumatic
Application fields	water, petroleum and natural gas
Feature 1	full bore, reduce bore
Feature 2	locking device
Feature 3	anti-blow out stem
Feature 4	fire safe and Anti-static device
Feature 5	DBB / double block and bleed
Feature 6	stem & seats to be equipped injection fitting

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
