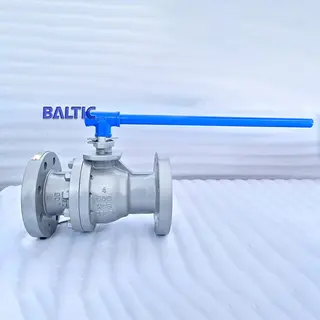

2-PC Side Entry Floating Ball Valve, A216 WCB, 4INh, CL600, RF

Name: 2-PC Side Entry Floating Ball Valve, A216 WCB, 4INh, CL600, RF
SKU: 1-2
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Side Entry Floating Ball Valve Factory Baltic Provides 2-PC Side Entry Floating Ball Valve, ASTM A216 WCB, 4IN, Class 600 LB, RF Ends, API 598 Test.

Request a quote

Detail Information

Valve description:
Name: Side entry floating ball valve, 2-PC type.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 4 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Side Entry Floating Ball Valve
Nominal diameter	1/2" - 8"	(DN15 - DN200)
Design temp.	-46℃ - 121℃
Design pressure	Class 150 - 2500	(PN16 - PN420)
Material	WCB, A105, LCB, LF2, CF8, F304, CF8M, F316
Design standard	API 6D, ISO 17292, BS 5351
Face to face	ASME B16.10, Manufacture Standard	EN558 series, Manufacture Standard
Connection end	ASME B16.5, ASME B16.25, ASME B16.11, ASME B1.20.1	EN1092-1 series
Test standard	API 598, API 6D	EN12266-1
Operation	level, worm gear, electric, pneumatic
Application	water, petroleum and natural gas
Feature 1	locking device
Feature 2	anti-blow out stem
Feature 3	fire safe and anti-static device
Feature 4	full bore,reduce bore

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.
