Elliptical Gasket Leakage in Class 150 LB Gate Valves

We have analyzed the cause of on-site leakage, despite the Class 150LB gate valve passing multiple pressure tests.

Structural Issues of the Elliptical Gaskets

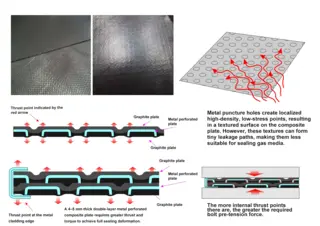

Material Issues of the Elliptical Gaskets

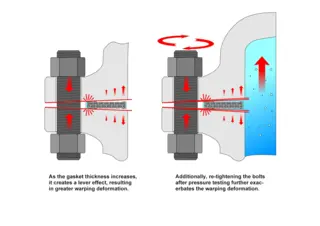

Cause of Flange Warping Deformation

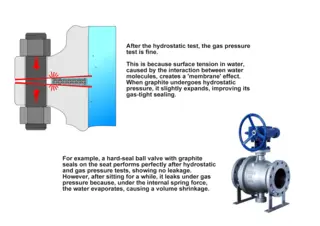

Reason for No Air Leakage After Hydrostatic Testing

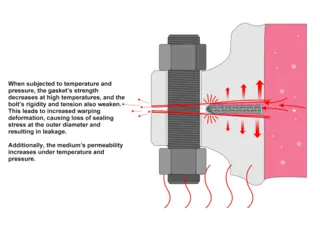

Leakage Caused by On-site Flange Warping Deformation

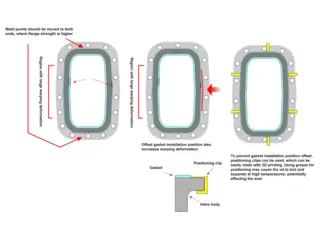

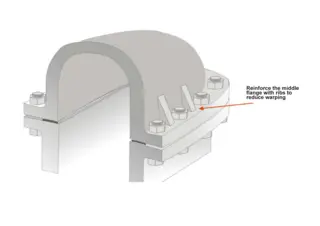

Methods to Improve Flange Warping Deformation

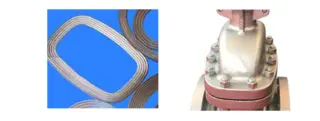

Using corrugated gaskets or reinforcing the middle flange strength can improve sealing performance. However, both increase manufacturing costs and cannot quickly change the inherent nature of existing raw castings.

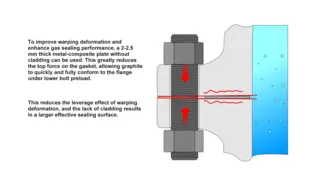

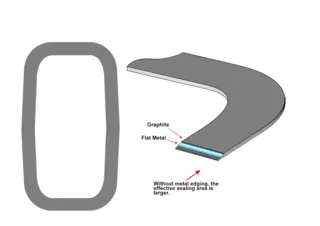

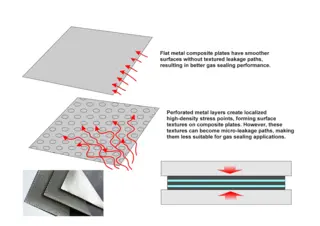

Improvement of Elliptical Gasket with Metal Flat Plate Composite

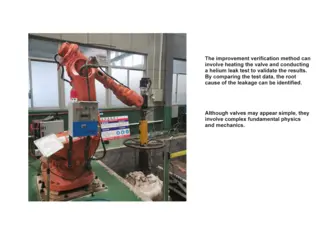

Methods to Verify Improvement of Flange Warping Deformation
